TPS2511QDGNRQ1 - Texas Instruments

Description: Automotive Catalog USB Dedicated Charging Port Controller and Current Limiting Power Switch

Download TPS2511QDGNRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

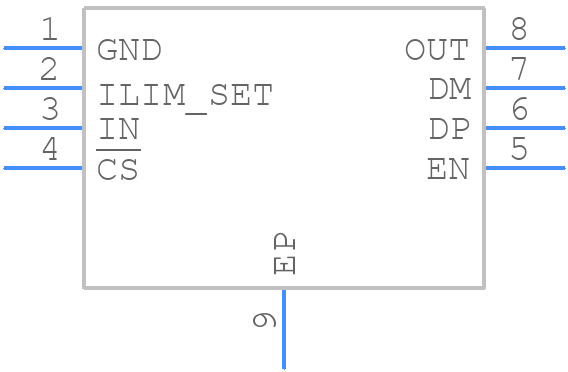

Symbol
TPS2511QDGNRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2511QDGNRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008E PowerPAD VSSOP - 1.1 mm max height
click to zoom
3D Models
TPS2511QDGNRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGN0008E PowerPAD VSSOP - 1.1 mm max height
click to zoom

TPS2511QDGNRQ1 Details

  • Manufacturer Part Number:

    TPS2511QDGNRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.23 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2511QDGNRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS2511QDGNRQ1 should include a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 10uF) placed close to the device. Additionally, the input and output capacitors should be placed close to the device and connected to the respective pins using short traces.
  • The input capacitor should be a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7uF to 10uF. The output capacitor should be a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10uF to 22uF. The capacitor values and types should be chosen based on the specific application requirements and the device's operating frequency.
  • The TPS2511QDGNRQ1 has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • The TPS2511QDGNRQ1 has an enable pin (EN) that should be driven high to enable the device and low to disable it. During power-up, the input voltage should be ramped up slowly (e.g., 10ms to 100ms) to prevent inrush currents. During power-down, the input voltage should be ramped down slowly to prevent voltage spikes.
  • The recommended input voltage range for the TPS2511QDGNRQ1 is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
