Texas Instruments provides a recommended PCB layout in the TPS2541ARTET evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the TPS2541ARTET.
The TPS2541ARTET has a maximum ambient temperature rating of 85°C. However, the device's junction temperature (TJ) should not exceed 125°C. It's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to keep the device within its operating temperature range.
Yes, the TPS2541ARTET is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and perform additional testing to ensure it meets the specific requirements of your application.
To troubleshoot issues with the TPS2541ARTET, start by reviewing the device's datasheet and application notes. Check the input voltage, output current, and component values to ensure they are within the recommended specifications. Use an oscilloscope to monitor the output voltage and current waveforms. Additionally, check for thermal issues by measuring the device's temperature and ensuring proper thermal management. If the issue persists, consult with Texas Instruments' technical support or a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2541ARTET Overview

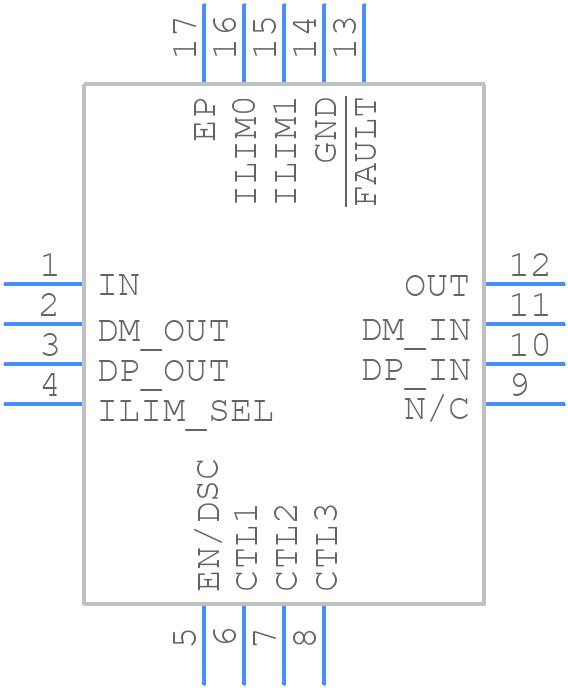

Use the download button to access the TPS2541ARTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
