Texas Instruments provides a recommended PCB layout in the TPS2541RTET datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low EMI, and high reliability.
The input capacitor selection depends on the input voltage, output current, and operating frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF, a voltage rating of 1.5 to 2 times the input voltage, and a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stability.
The TPS2541RTET is a 4-channel power switch with a maximum output current of 1A per channel. However, the total output current is limited by the device's thermal performance and power dissipation. It is essential to ensure that the device operates within its thermal limits to prevent overheating and ensure reliability.
The TPS2541RTET has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the input voltage. The device will automatically shut down if the output current exceeds the programmed limit. Additionally, an external resistor can be used to set the overcurrent threshold.
The EN (Enable) pin is used to enable or disable the power switch. When the EN pin is high, the power switch is enabled, and when it is low, the power switch is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2541RTET Overview

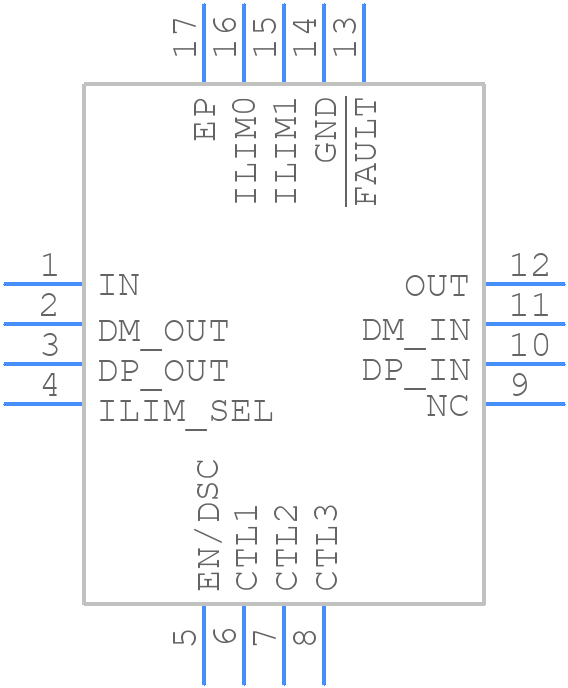

Use the download button to access the TPS2541RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
