A good PCB layout for the TPS2546QRTERQ1 involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
When selecting an inductor for the TPS2546QRTERQ1, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ.
The TPS2546QRTERQ1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. In general, the device can operate up to 85°C ambient temperature with proper heat sinking and airflow.
To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR, and that the inductor is properly selected and placed.
Yes, the TPS2546QRTERQ1 is AEC-Q100 qualified and suitable for use in high-reliability and automotive applications. However, additional testing and validation may be required to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2546QRTERQ1 Overview

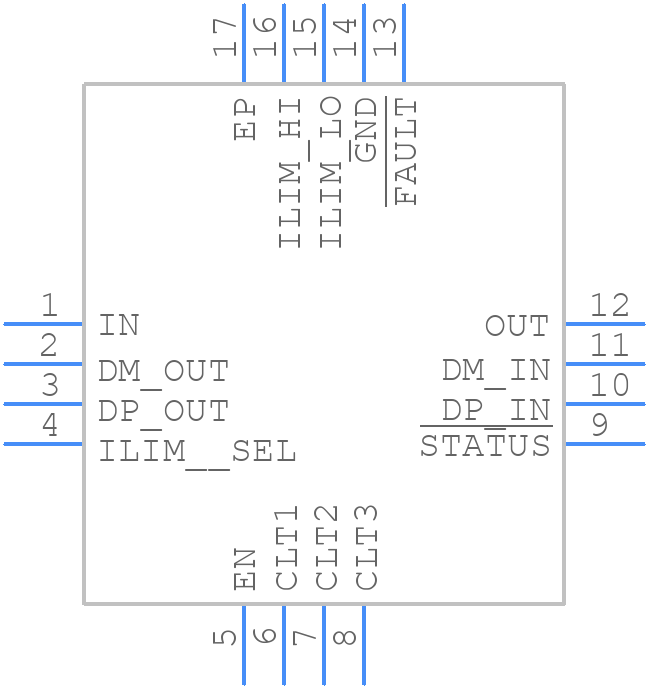

Use the download button to access the TPS2546QRTERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
