A good PCB layout for the TPS2546RTET involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The power traces should be wide and short, and the ground plane should be solid and unbroken. Additionally, the thermal pad should be connected to a solid ground plane to ensure good heat dissipation.
To ensure stability, the TPS2546RTET requires a minimum output capacitance of 10uF, and the output capacitor's ESR should be less than 1 ohm. Additionally, the input capacitor should be at least 1uF, and the input voltage should be well-regulated. It's also important to follow the recommended PCB layout guidelines to minimize parasitic inductance and capacitance.
The TPS2546RTET is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. In general, the device can operate up to 85°C ambient temperature with a maximum power dissipation of 2.5W, and up to 105°C with a maximum power dissipation of 1.5W.
Yes, the TPS2546RTET is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
The power dissipation of the TPS2546RTET can be calculated using the following formula: Pd = (VIN - VOUT) x IOUT + (VIN x IQ), where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current. The maximum power dissipation should not exceed 2.5W.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2546RTET Overview

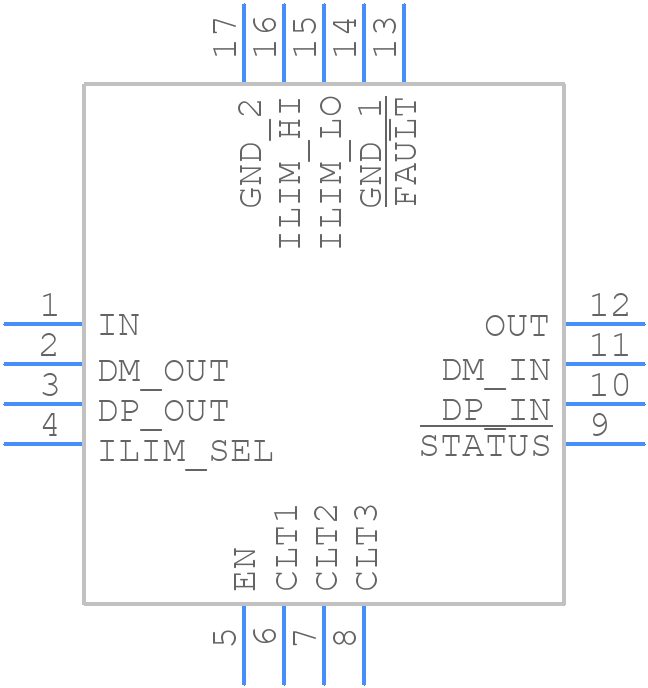

Use the download button to access the TPS2546RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
