Part Image

TPS2561DRCT - Texas Instruments

Description: Power Switch ICs - Power Distribution Dual Ch Prec Adj Current-Ltd Pwr Sw

Download TPS2561DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

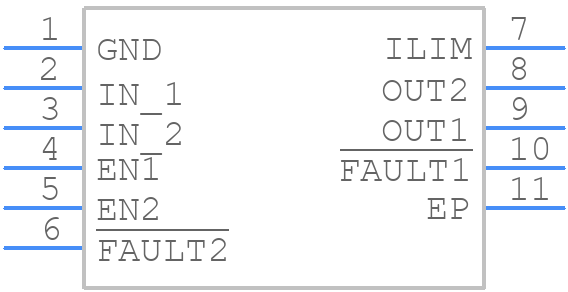

Symbol
TPS2561DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2561DRCT - Texas Instruments PCB footprint - Other - Other - DRC0010J
click to zoom
3D Models
TPS2561DRCT - Texas Instruments - 3D model - Other - DRC0010J
click to zoom

TPS2561DRCT Details

  • Manufacturer Part Number:

    TPS2561DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.125 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2561DRCT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS2561DRCT involves placing the device close to the load, using short and wide traces for power and ground, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended layout and placement, use the correct output capacitor value and type, and add a 10nF-22nF ceramic capacitor between the FB and VOUT pins. Additionally, ensure that the input voltage is within the recommended range.
  • The TPS2561DRCT can handle input voltages up to 6.5V, but it's recommended to keep the input voltage below 5.5V for optimal performance and to prevent overheating.
  • The TPS2561DRCT is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage at higher temperatures to prevent overheating and ensure reliable operation.
  • The output voltage of the TPS2561DRCT can be adjusted by using a resistor divider network between the FB and VOUT pins. The output voltage can be calculated using the formula: VOUT = 0.6V x (R1 + R2) / R2.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2561DRCT Overview

Use the download button to access the TPS2561DRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
