TPS25740RGER - Texas Instruments

Description: TPS25740 USB Type-C™ Rev 1.2 and USB PD 2.0 Source Controller (5V/12V/20V)

Download TPS25740RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

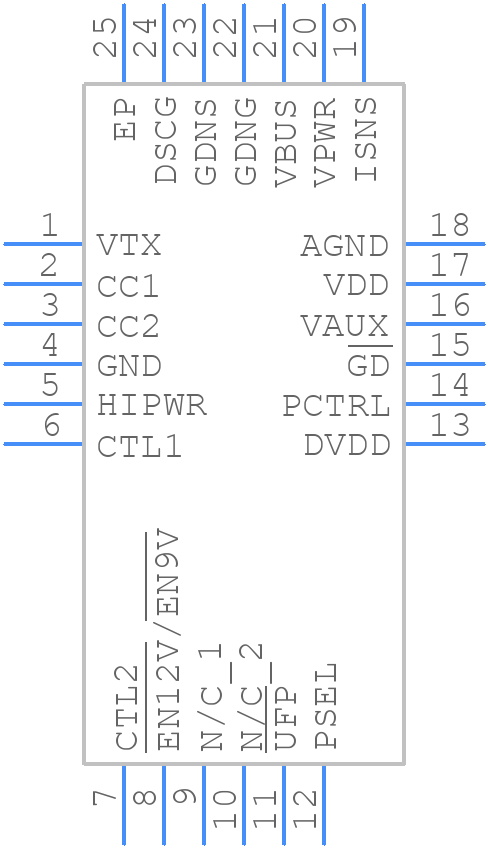

TPS25740RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25740RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024
click to zoom
3D Models
TPS25740RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024
click to zoom

TPS25740RGER Details

  • Manufacturer Part Number:

    TPS25740RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    OTHER SUPPLY VOLTAGE RANGE: VMIN-0,VNOM-1.4 AND VMAX-5.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD Controller

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4.65 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS25740RGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS25740RGER involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The power traces should be wide and short, and the ground plane should be solid and unbroken. A 4-layer PCB with a dedicated ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and an ESR of less than 1 ohm. For output capacitors, choose ones with a voltage rating of at least 1.5 times the output voltage, and an ESR of less than 0.1 ohm. X5R or X7R ceramic capacitors are recommended.
  • The maximum ambient temperature for the TPS25740RGER is 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly.
  • The output voltage of the TPS25740RGER can be calculated using the formula: VOUT = 0.8V x (1 + RFBT/RFB) where RFBT and RFB are the feedback resistors. The output voltage range is 0.8V to 3.3V.
  • The minimum input voltage for the TPS25740RGER is 2.7V. However, the device can operate down to 2.5V with reduced performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25740RGER Overview

Use the download button to access the TPS25740RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
