A good PCB layout for the TPS25740BRGER involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
When selecting an inductor for the TPS25740BRGER, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ.
The TPS25740BRGER has an operating ambient temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating, but the maximum junction temperature should not exceed 125°C.
The TPS25740BRGER has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the OCSET pin to GND. The value of the resistor determines the overcurrent threshold. A lower resistor value sets a higher overcurrent threshold, and vice versa.
Yes, the TPS25740BRGER is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25740BRGER Overview

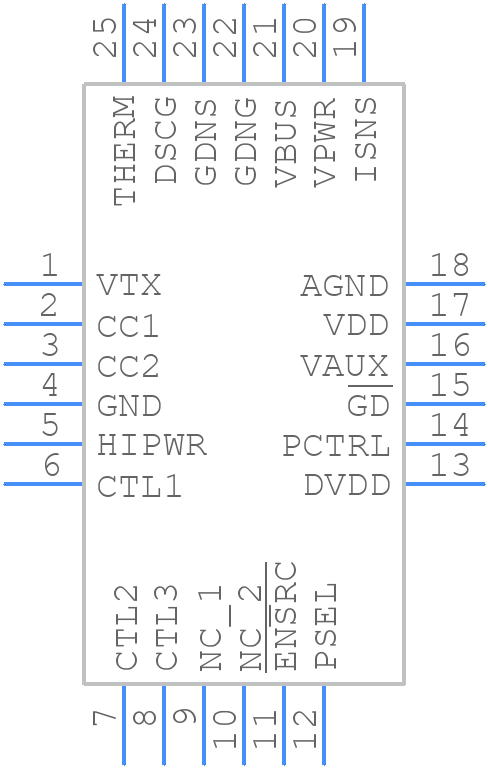

Use the download button to access the TPS25740BRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
