TPS25740RGET - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS25740RGET - USB Interface, USB Type-C and Power Delivery (PD) Controller, USB 2.0, 4.65 V, 25 V, VQFN, 24 Pins

Download TPS25740RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

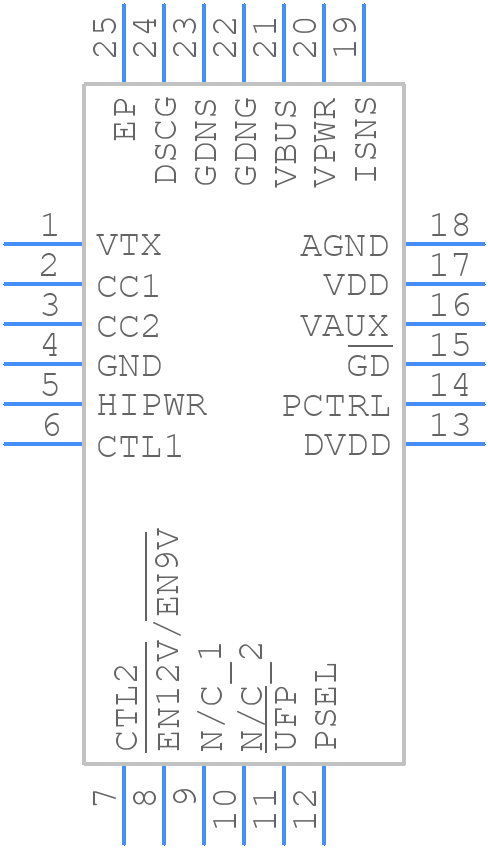

TPS25740RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25740RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024
click to zoom
3D Models
TPS25740RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024
click to zoom

TPS25740RGET Details

  • Manufacturer Part Number:

    TPS25740RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    OTHER SUPPLY VOLTAGE RANGE: VMIN-0,VNOM-1.4 AND VMAX-5.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD Controller

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4.65 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS25740RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS25740RGET involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should be chosen based on the input voltage ripple requirement, output current, and operating frequency. A ceramic capacitor with a value of 10uF to 22uF and a voltage rating of 10V to 25V is a good starting point. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize power loss.
  • The TPS25740RGET can deliver up to 4A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the thermal performance and power dissipation of the device to ensure reliable operation.
  • The TPS25740RGET has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values should be chosen to set the overcurrent threshold to the desired value. The device will automatically shut down if the output current exceeds the set threshold.
  • The TPS25740RGET is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS25740RGET Overview

Use the download button to access the TPS25740RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
