OTHER SUPPLY VOLTAGE RANGE: VMIN-0,VNOM-1.4 AND VMAX-5.5
Adjustable Threshold:
NO
Analog IC - Other Type:
USB PD Controller
JESD-30 Code:
S-PQCC-N24
JESD-609 Code:
e4
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
25 V
Supply Voltage-Min (Vsup):
4.65 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
TPS25740ARGER Frequently Asked Questions (FAQs)
The recommended layout and placement for the TPS25740ARGER involves placing the device close to the load, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. Additionally, the device should be placed on the top layer, and the input and output capacitors should be placed on the same layer as the device.
To optimize the compensation network for the TPS25740ARGER, start by using the recommended values in the datasheet. Then, adjust the values based on the specific application requirements, such as output voltage, output current, and input voltage. Use simulation tools or empirical methods to fine-tune the compensation network for optimal stability and transient response.
The TPS25740ARGER has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. The device can operate up to 125°C junction temperature, but the recommended operating temperature range is -40°C to 85°C. Ensure good airflow and use thermal vias or a heat sink if necessary to keep the device within the recommended temperature range.
To ensure EMC with the TPS25740ARGER, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as necessary. Additionally, ensure that the device is properly decoupled and that the input and output capacitors are properly sized and placed.
The TPS25740ARGER has a specific power sequencing requirement, where the input voltage (VIN) must be applied before the enable signal (EN). The device also has a soft-start feature that can be used to control the output voltage rise time. Ensure that the power sequencing is properly implemented to prevent damage to the device or other components in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25740ARGER Overview

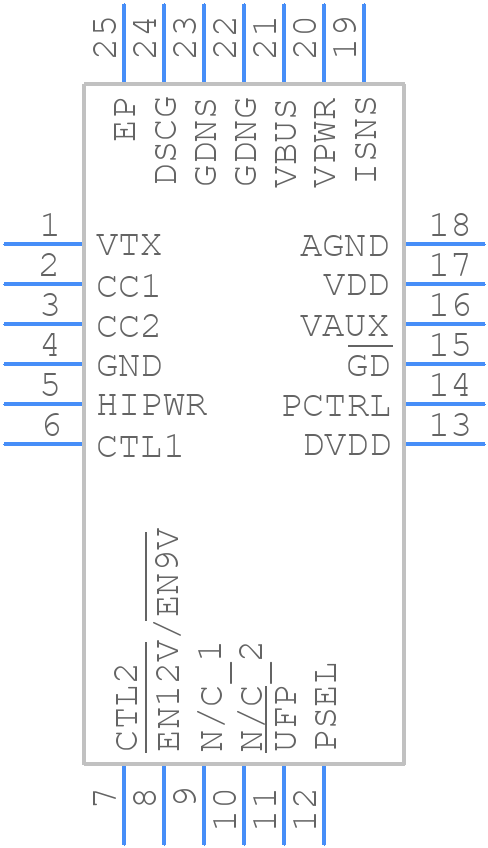

Use the download button to access the TPS25740ARGER schematic symbol, PCB footprint, and 3D model.
