TPS25820DSSR - Texas Instruments

Description: TPS2582x USB Type-C 1.5-A Source Controller and Power Switch

Download TPS25820DSSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

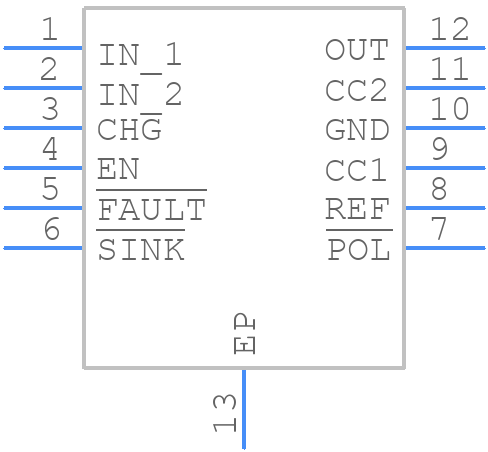

TPS25820DSSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS25820DSSR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSS0012B
click to zoom
3D Models
TPS25820DSSR - Texas Instruments - 3D model - Small Outline No-lead - DSS0012B
click to zoom

TPS25820DSSR Details

  • Manufacturer Part Number:

    TPS25820DSSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    THERMAL SHUTDOWN:155C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.08X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS25820DSSR Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS25820DSSR is 2A per channel, with a total current limit of 4A for both channels combined.
  • To configure the TPS25820DSSR for USB-C PD applications, connect the CC1 and CC2 pins to the CC lines of the USB-C connector, and use the I2C interface to configure the device for PD mode. Refer to the TI application note for detailed configuration and programming guidelines.
  • The EN (enable) pin is used to enable or disable the TPS25820DSSR. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. This pin can be used to control the power state of the device.
  • The TPS25820DSSR has built-in fault detection and protection mechanisms. In the event of an overcurrent or overheating condition, the device will automatically shut down to prevent damage. The device will also send an interrupt signal to the system controller to notify it of the fault condition.
  • Yes, the TPS25820DSSR can be used in other applications that require dual-channel power switching and control, such as battery charging, power banks, and other high-current applications.
