TPS259241DRCT - Texas Instruments

Description: 12V, 5A, 28mΩ eFuse with BFET Driver for Reverse Current Protection

Download TPS259241DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

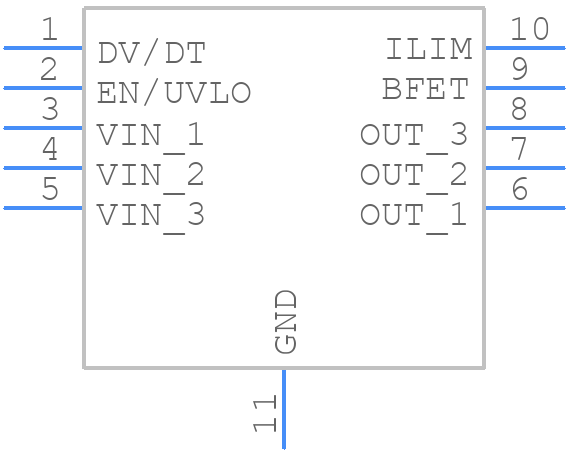

TPS259241DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259241DRCT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC (S-PVSON-N10) D-shape
click to zoom
3D Models
TPS259241DRCT - Texas Instruments - 3D model - Small Outline No-lead - DRC (S-PVSON-N10) D-shape
click to zoom

TPS259241DRCT Details

  • Manufacturer Part Number:

    TPS259241DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    13.8 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    13.8 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS259241DRCT Frequently Asked Questions (FAQs)

  • The TPS259241DRCT can handle input voltages up to 6V, but it's recommended to keep the input voltage below 5.5V for optimal performance and to prevent damage to the device.
  • To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, and use a high-quality output capacitor with a low ESR (Equivalent Series Resistance). Additionally, ensure that the input voltage is well-regulated and free of noise.
  • The minimum input capacitance required is 1uF, but it's recommended to use a 4.7uF or 10uF capacitor to ensure stability and optimal performance.
  • The TPS259241DRCT is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and ensure good thermal management to prevent overheating.
  • The output voltage of the TPS259241DRCT is set by the resistive divider network connected to the FB pin. Use the formula: Vout = 0.6V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
