TPS259250DRCR - Texas Instruments

Description: 5V, 5A, 30mΩ eFuse with Adjustable +/-15% Accurate Current Limit

Download TPS259250DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

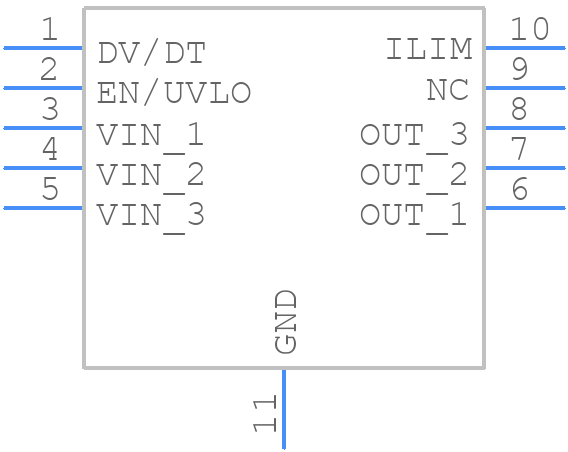

TPS259250DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259250DRCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC0010J-
click to zoom
3D Models
TPS259250DRCR - Texas Instruments - 3D model - Small Outline No-lead - DRC0010J-
click to zoom

TPS259250DRCR Details

  • Manufacturer Part Number:

    TPS259250DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS259250DRCR Frequently Asked Questions (FAQs)

  • The TPS259250DRCR can handle input voltages up to 25V, but it's recommended to keep the input voltage below 24V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, and use a high-quality output capacitor with low ESR. Additionally, ensure that the input voltage is well-regulated and the output load is within the recommended range.
  • The minimum input capacitance required is 10uF, but it's recommended to use a higher value (e.g., 22uF) to ensure stability and optimal performance.
  • The TPS259250DRCR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is properly heatsinked and follow the recommended thermal design guidelines to minimize thermal stress.
  • The output voltage of the TPS259250DRCR can be adjusted by using a resistive divider network between the output and the FB pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
