TPS259250DRCT - Texas Instruments

Description: Hot Swap Voltage Controllers 5V 5A 30mA eFuse A 595-TPS259250DRCR

Download TPS259250DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

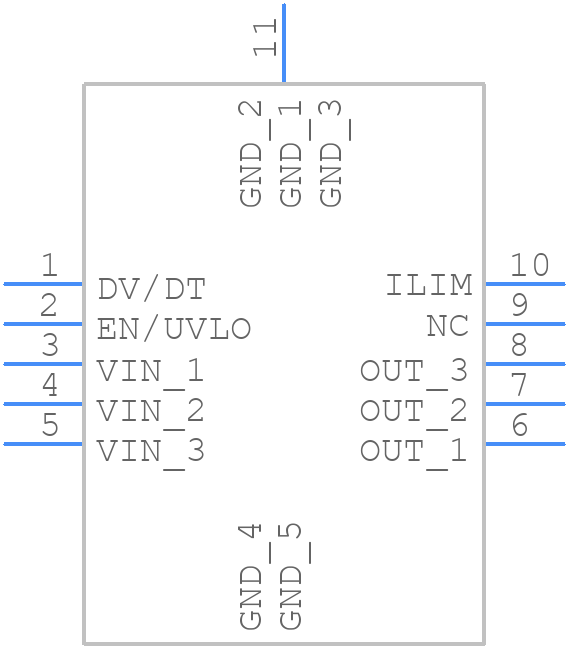

Symbol
TPS259250DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259250DRCT - Texas Instruments PCB footprint - Other - Other - DRC0010J1_25
click to zoom
3D Models
TPS259250DRCT - Texas Instruments - 3D model - Other - DRC0010J1_25
click to zoom

TPS259250DRCT Details

  • Manufacturer Part Number:

    TPS259250DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS259250DRCT Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS259250DRCT is 6V, but it's recommended to keep it below 5.5V for optimal performance and reliability.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consider consulting with a Texas Instruments field application engineer or a seasoned power management expert.
  • For optimal thermal performance, follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal conductivity between the device and the PCB. A thermal pad or heat sink may be necessary for high-power applications.
  • Use a systematic approach to troubleshoot, checking for proper input voltage, output loading, and thermal management. Consult the datasheet and application notes, and consider using a logic analyzer or oscilloscope to debug the issue.
  • The TPS259250DRCT is a high-reliability device, but for safety-critical applications, additional testing and validation may be required. Consult with a Texas Instruments field application engineer or a reliability expert to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS259250DRCT Overview

Use the download button to access the TPS259250DRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25, or try a keyword search, such as Power Management Circuits
