TPS259531DSGR - Texas Instruments

Description: 2.7V to 18V, 4A, 34mΩ eFuse With Fast Overvoltage Protection

Download TPS259531DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

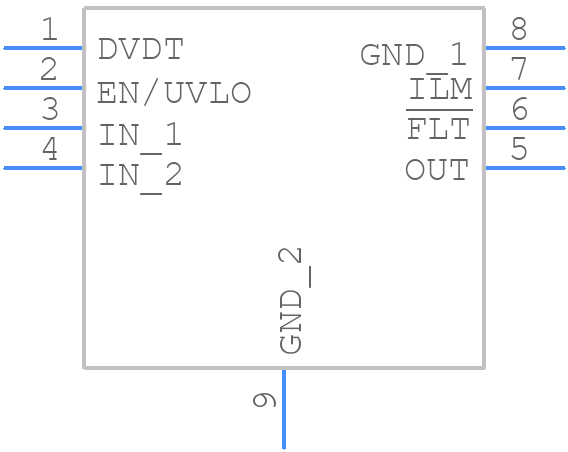

TPS259531DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259531DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A)
click to zoom
3D Models
TPS259531DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A)
click to zoom

TPS259531DSGR Details

  • Manufacturer Part Number:

    TPS259531DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    18 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.54V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS259531DSGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS259531DSGR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF. The capacitor should be rated for the maximum input voltage and should be placed as close to the VIN pin as possible. X5R or X7R dielectric capacitors are recommended.
  • The TPS259531DSGR can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the thermal performance and power dissipation of the device in the specific application.
  • The output voltage of the TPS259531DSGR can be adjusted by using a resistor divider network between the FB pin and the output voltage. The resistor values can be calculated using the formula provided in the datasheet.
  • The EN pin is an active-high enable input that allows the device to be turned on or off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and the output voltage is turned off.
