TPS259803ONRGER - Texas Instruments

Description: TPS25980 2.7 24 V 8 A 3 m u03A9 Smart eFuse Integrated Hot swap Protection With Adjustable Transient Fault Management

Download TPS259803ONRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

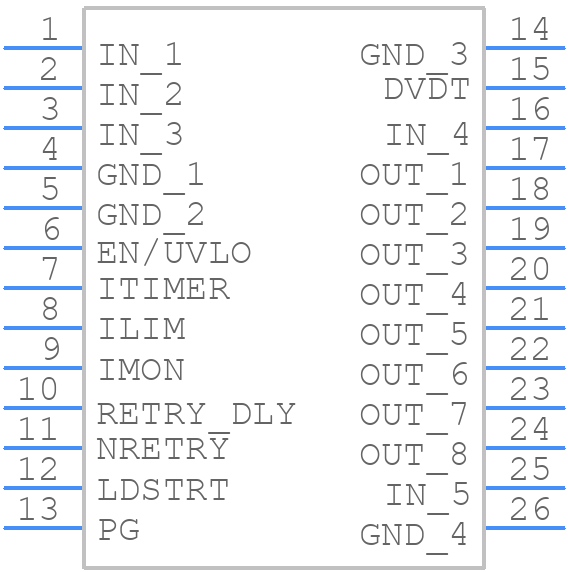

Symbol
TPS259803ONRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259803ONRGER - Texas Instruments PCB footprint - Other - Other - RGE0024M_2021
click to zoom
3D Models
TPS259803ONRGER - Texas Instruments - 3D model - Other - RGE0024M_2021
click to zoom

TPS259803ONRGER Details

  • Manufacturer Part Number:

    TPS259803ONRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-08-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +7.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS259803ONRGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS259803ONRGER involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor has a low ESR (Equivalent Series Resistance) and is properly sized. A minimum output capacitance of 10uF is recommended. Additionally, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The maximum input voltage that can be applied to the TPS259803ONRGER is 6V. Exceeding this voltage may cause damage to the device.
  • The TPS259803ONRGER is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures.
  • To troubleshoot issues with the TPS259803ONRGER, check the input voltage, output voltage, and output current. Verify that the device is properly soldered and the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for more information.
