Texas Instruments provides a recommended PCB layout in the TPS259813ARPWR evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage ripple, output current, and operating frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the switching frequency and output current.
The maximum output current of the TPS259813ARPWR is dependent on the input voltage, output voltage, and thermal conditions. While the datasheet specifies a maximum output current of 3A, it's essential to consider the device's thermal performance and power dissipation to ensure reliable operation. TI provides a power dissipation calculator to help estimate the maximum output current for a given application.
The TPS259813ARPWR has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. For SCP, connect the SCP pin to a resistor divider network that sets the short-circuit detection threshold. TI provides detailed guidelines and equations in the datasheet to help with the design.
Proper thermal management is crucial for the TPS259813ARPWR. TI recommends using a thermal pad or heat sink to dissipate heat, especially in high-power applications. Ensure good thermal conductivity between the device and the heat sink or thermal pad, and consider using thermal interface materials (TIMs) to minimize thermal resistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS259813ARPWR Overview

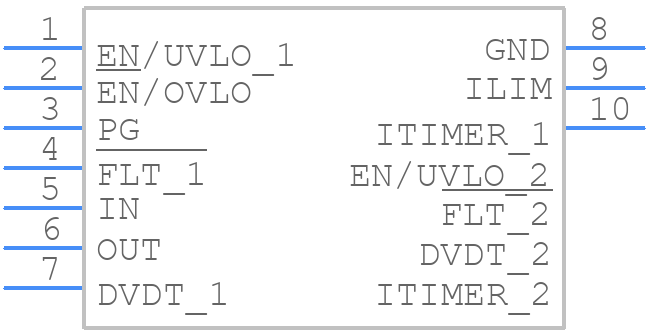

Use the download button to access the TPS259813ARPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
