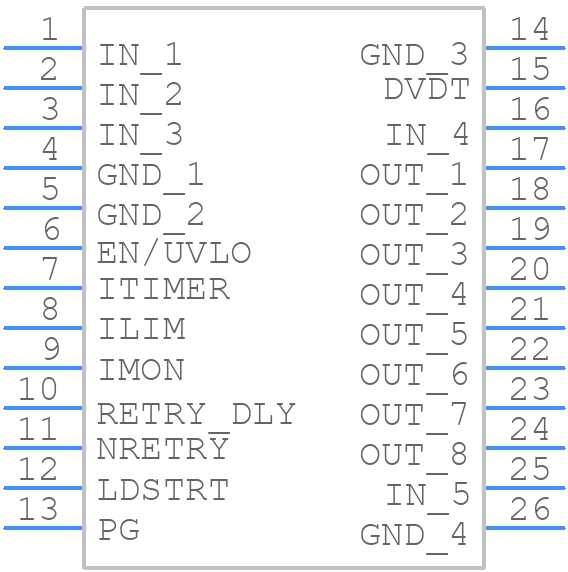

TPS259822LNRGER - Texas Instruments

TPS259822LNRGER Details

• Manufacturer Part Number:

  TPS259822LNRGER

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2019-06-25

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  OVERVOLTAGE THRESHOLD IS 3.7V

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  eFUSE

• Input Voltage-Max:

  24 V

• Input Voltage-Min:

  2.7 V

• JESD-30 Code:

  S-PQCC-N24

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  2

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  15 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  24 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +3.7V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
