A good PCB layout for the TPS259824LNRGET involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and add a small ceramic capacitor (e.g., 10nF) between the VIN and EN pins. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
Although the datasheet specifies a maximum input voltage of 6V, it's recommended to limit the input voltage to 5.5V to ensure reliable operation and prevent damage to the device.
While the device is rated for operation up to 125°C, it's essential to consider the junction temperature (TJ) and ensure that it does not exceed 150°C. Use thermal design and layout techniques to minimize the junction temperature, and consider using a heat sink if necessary.
To troubleshoot issues, start by verifying the input voltage, output current, and PCB layout. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS259824LNRGET Overview

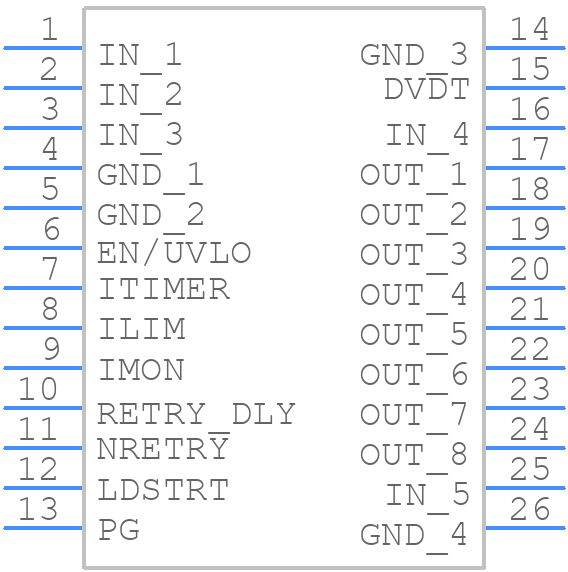

Use the download button to access the TPS259824LNRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
