TPS259824ONRGER - Texas Instruments

Description: Hot Swap Voltage Controllers

Download TPS259824ONRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

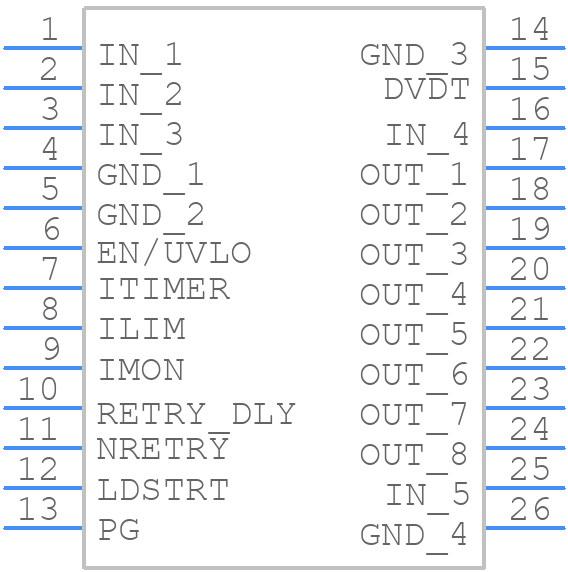

TPS259824ONRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259824ONRGER - Texas Instruments PCB footprint - Other - Other - RGE0024M_1
click to zoom
3D Models
TPS259824ONRGER - Texas Instruments - 3D model - Other - RGE0024M_1
click to zoom

TPS259824ONRGER Details

  • Manufacturer Part Number:

    TPS259824ONRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OVERVOLTAGE THRESHOLD IS 16.9V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +16.9V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS259824ONRGER Frequently Asked Questions (FAQs)

  • The TPS259824ONRGER can handle input voltages up to 24V, but it's recommended to keep the input voltage below 20V for optimal performance and to prevent overheating.
  • The TPS259824ONRGER is a programmable voltage regulator, and the output voltage can be set using an external resistor divider network. You can use the formula provided in the datasheet to calculate the required resistor values for your desired output voltage.
  • The TPS259824ONRGER can provide up to 4A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for the recommended operating conditions and thermal derating.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. A 10uF to 22uF ceramic capacitor is recommended. Also, ensure that the input voltage is stable and within the recommended range.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. You can use the EN pin to implement power sequencing or to turn off the regulator when not in use.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
