TPS259827LNRGER - Texas Instruments

Description: Hot Swap Voltage Controllers 2.7-V to 24-V, 2.7-m , 15-A eFuse with hot-swap protection, +/-1.5% current monitor & adj. fault mgmt. 24-VQFN -40 to 125

Download TPS259827LNRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

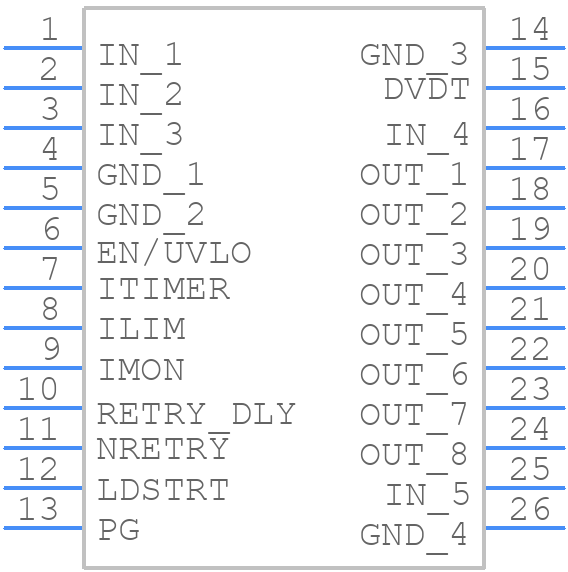

TPS259827LNRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS259827LNRGER - Texas Instruments PCB footprint - Other - Other - TPS259827LNRGER-2
click to zoom
3D Models
TPS259827LNRGER - Texas Instruments - 3D model - Other - TPS259827LNRGER-2
click to zoom

TPS259827LNRGER Details

  • Manufacturer Part Number:

    TPS259827LNRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS259827LNRGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS259827LNRGER involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. TI also provides a stability calculator tool to help with component selection.
  • The TPS259827LNRGER can handle input voltages up to 28V, but it's recommended to operate within the specified input voltage range of 6.5V to 24V for optimal performance and reliability.
  • The TPS259827LNRGER is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent overheating.
  • TI provides a troubleshooting guide in the datasheet and application notes, which covers common issues and their solutions. Additionally, using an oscilloscope to monitor the input and output waveforms can help identify the root cause of the issue.
