TPS26602RHFR - Texas Instruments

Description: 60V 2A Industrial eFuse With Integrated Reverse-Input Polarity Protection

Download TPS26602RHFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

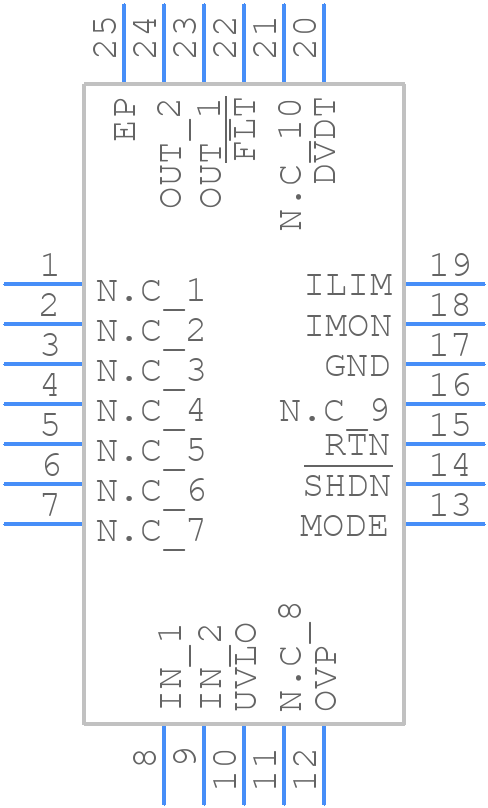

TPS26602RHFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26602RHFR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom
3D Models
TPS26602RHFR - Texas Instruments - 3D model - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom

TPS26602RHFR Details

  • Manufacturer Part Number:

    TPS26602RHFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-01-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.23 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26602RHFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26602RHFR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be selected based on the input voltage, output current, and ripple current requirements. A low-ESR ceramic capacitor with a voltage rating of at least 1.5 times the maximum input voltage is recommended. The capacitance value should be at least 10uF for most applications.
  • The TPS26602RHFR can deliver up to 2A of output current, but the actual output current capability depends on the input voltage, output voltage, and thermal conditions. The device should be operated within the recommended operating conditions to ensure reliable operation.
  • The output voltage of the TPS26602RHFR can be adjusted by using a resistor divider network between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 / R2 + 1), where R1 and R2 are the resistors in the divider network.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and operates normally. When the EN pin is pulled low, the device is disabled and the output voltage is turned off.
