TPS26602RHFT - Texas Instruments

Description: 60V 2A Industrial eFuse With Integrated Reverse-Input Polarity Protection

Download TPS26602RHFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

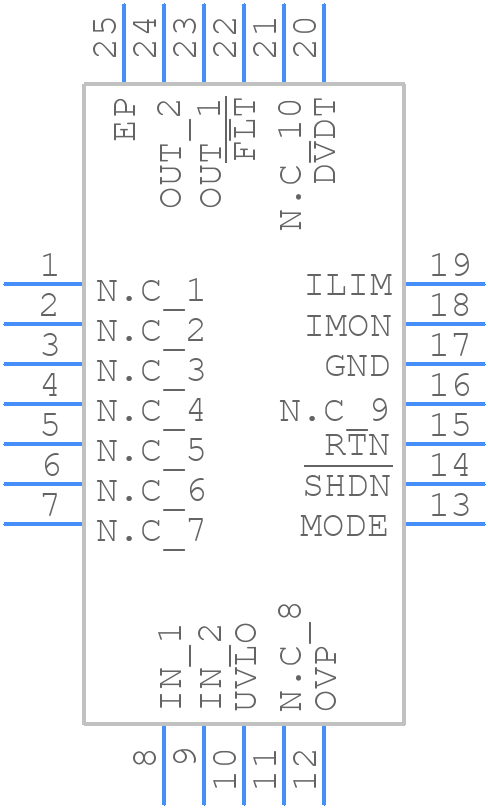

TPS26602RHFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26602RHFT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF0024A
click to zoom
3D Models
TPS26602RHFT - Texas Instruments - 3D model - Quad Flat No-Lead - RHF0024A
click to zoom

TPS26602RHFT Details

  • Manufacturer Part Number:

    TPS26602RHFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-01-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.23 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26602RHFT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26602RHFT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be selected based on the input voltage, output current, and ripple current requirements. A low-ESR capacitor with a voltage rating of at least 1.5 times the maximum input voltage is recommended. X5R or X7R ceramic capacitors are good options.
  • The TPS26602RHFT can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. The device should be operated within the recommended operating conditions to ensure reliable operation.
  • The output voltage of the TPS26602RHFT can be configured using the FB pin and an external resistor divider network. The resistor values can be calculated using the formulae provided in the datasheet, and the output voltage can be set to any value between 0.8V and 5.5V.
  • The TPS26602RHFT has a thermal shutdown feature that protects the device from overheating. The device should be operated within the recommended operating temperature range, and a thermal pad or heat sink may be required for high-current applications.
