TPS26610DDFR - Texas Instruments

Description: Hot Swap Voltage Controllers 50-V, universal 4-20-mA, +/-20-mA current loop protector

Download TPS26610DDFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

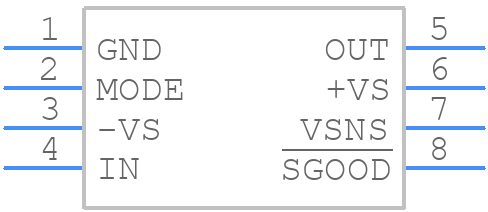

TPS26610DDFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26610DDFR - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DDF0008A
click to zoom
3D Models
TPS26610DDFR - Texas Instruments - 3D model - SOT23 (8-Pin) - DDF0008A
click to zoom

TPS26610DDFR Details

  • Manufacturer Part Number:

    TPS26610DDFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-11-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    -50 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.04 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.75 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS26610DDFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26610DDFR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 2x the input voltage, and output capacitors with a voltage rating of at least 1.5x the output voltage. The capacitance value depends on the specific application, but a good starting point is 10uF for the input capacitor and 22uF for the output capacitor.
  • The TPS26610DDFR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. A good thermal design should ensure that the junction temperature stays below 125°C.
  • The TPS26610DDFR has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values determine the overcurrent threshold, and the device will limit the output current to prevent damage in case of an overload.
  • Yes, the TPS26610DDFR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and it is also suitable for use in industrial and medical applications that require high reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS26610DDFR Overview

Use the download button to access the TPS26610DDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26, or try a keyword search, such as Power Management Circuits
