TPS26630RGER - Texas Instruments

Description: Hot Swap Voltage Controllers 4.5-V to 60-V, 31m , 0.6-6A eFuse with output power limiting and surge protection 24-VQFN -40 to 125

Download TPS26630RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

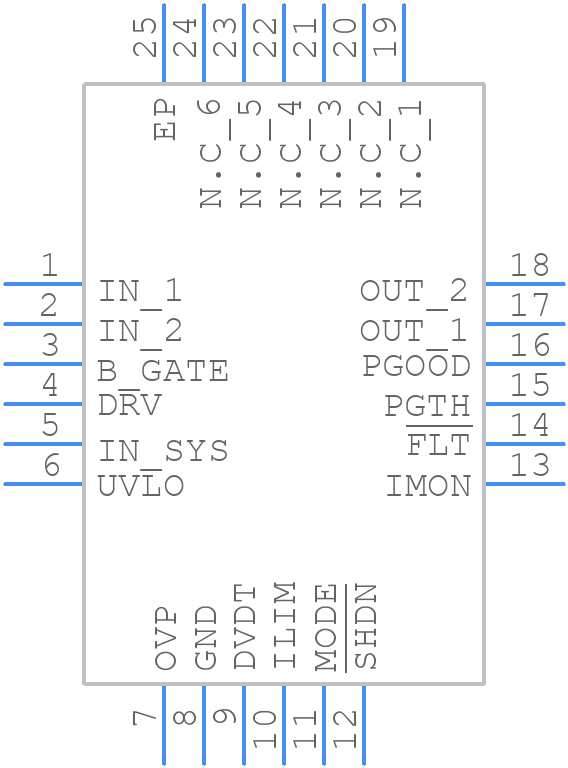

TPS26630RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26630RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H_
click to zoom
3D Models
TPS26630RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H_
click to zoom

TPS26630RGER Details

  • Manufacturer Part Number:

    TPS26630RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26630RGER Frequently Asked Questions (FAQs)

  • The TPS26630RGER can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor, and add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
  • The minimum input capacitance required is 1uF, but it's recommended to use a 4.7uF or larger ceramic capacitor to ensure stable operation and minimize input voltage ripple.
  • Yes, the TPS26630RGER is rated for operation up to 125°C, but it's essential to ensure proper thermal management and consider the device's power dissipation and thermal resistance when designing for high-temperature applications.
  • The output voltage can be adjusted by using a resistive divider network between the VOUT and GND pins. The recommended resistors are R1 = 10kΩ and R2 = 2.49kΩ for a 3.3V output, but you can calculate the required resistor values using the formula provided in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS26630RGER Overview

Use the download button to access the TPS26630RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26, or try a keyword search, such as Power Management Circuits
