Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for power management ICs, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) values. Additionally, the datasheet provides a stability analysis section that can help with this.
While the datasheet specifies a maximum input voltage of 15V, it's recommended to derate this value based on the specific application and operating conditions. It's also important to consider the maximum voltage rating of the input capacitor and other components.
The TPS3307-33DGNRG4 is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics, such as junction-to-ambient thermal resistance, and ensure proper heat sinking and airflow in the system design.
Start by verifying the input voltage, output voltage, and current levels using an oscilloscope or multimeter. Check the PCB layout and component values against the recommended design, and ensure that the device is properly soldered and connected. If issues persist, consult the datasheet's troubleshooting section or contact Texas Instruments support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3307-33DGNRG4 Overview

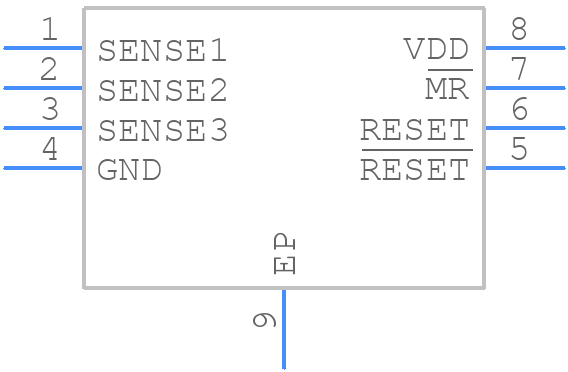

Use the download button to access the TPS3307-33DGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS33,
or try a keyword search, such as Power Management Circuits
