A good layout practice is to keep the input and output capacitors close to the device, use a solid ground plane, and keep the power traces short and wide. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize noise and ensure accurate voltage sensing.
The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 100uF. The capacitor values and types should be chosen based on the specific application requirements, such as output voltage, current, and ripple requirements.
The TPS3510DRG4 has an absolute maximum input voltage rating of 18V. However, the recommended maximum input voltage is 15V to ensure proper operation and to prevent damage to the device.
The output voltage of the TPS3510DRG4 can be adjusted by using a resistive divider network between the output and the sense pins. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
The typical startup time for the TPS3510DRG4 is around 1ms to 2ms, depending on the input voltage, output voltage, and load conditions. However, this time can vary depending on the specific application and design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3510DRG4 Overview

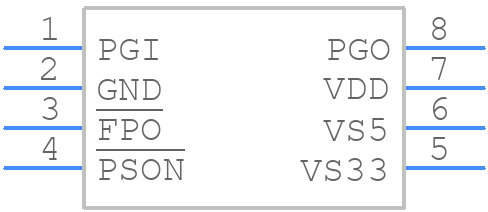

Use the download button to access the TPS3510DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS35,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
