Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for power management ICs, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The output voltage tolerance of the TPS3620-33DGKTG4 is typically ±2% over the entire operating temperature range. To calculate the output voltage tolerance, you can use the formula: Output Voltage Tolerance = (Output Voltage Nominal x Tolerance Percentage) / 100. For example, if the output voltage is 3.3V, the tolerance would be ±66mV.
The TPS3620-33DGKTG4 has an absolute maximum input voltage rating of 6.5V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure reliable operation and to prevent damage to the device.
To ensure stability and prevent oscillation, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a high-quality input capacitor with a low ESL (Equivalent Series Inductance).
The thermal shutdown temperature of the TPS3620-33DGKTG4 is typically around 150°C to 160°C. When the device temperature exceeds this threshold, it will shut down to prevent damage and will automatically restart when the temperature drops below the thermal shutdown threshold.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3620-33DGKTG4 Overview

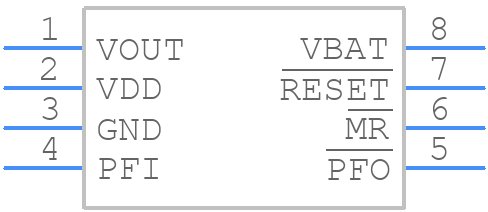

Use the download button to access the TPS3620-33DGKTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS36,
or try a keyword search, such as Power Management Circuits
