Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors.
The TPS3620-33MDGKTEP has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal vias to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
Although the datasheet specifies a maximum input voltage of 6V, it's recommended to limit the input voltage to 5.5V to ensure reliable operation and to prevent damage to the device.
The TPS3620-33MDGKTEP is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
Start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, thermal management, and decoupling capacitors. Use an oscilloscope to check for noise, ringing, or oscillations on the output. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3620-33MDGKTEP Overview

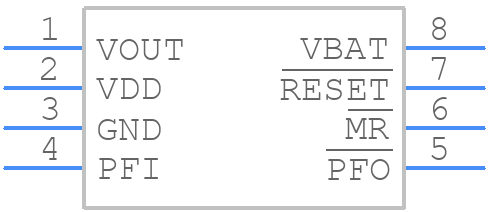

Use the download button to access the TPS3620-33MDGKTEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS36,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
