TPS37044BJOFDDFR - Texas Instruments

Description: SOT-23-THIN - 1.1 mm max height

Download TPS37044BJOFDDFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

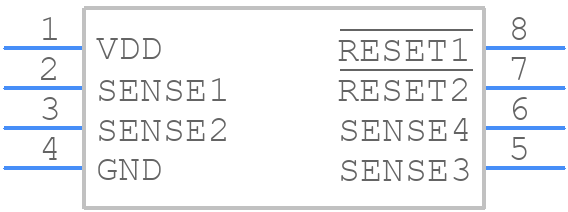

TPS37044BJOFDDFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS37044BJOFDDFR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOT-23 - 1.1 mm max height-
click to zoom
3D Models
TPS37044BJOFDDFR - Texas Instruments - 3D model - Small Outline Packages - SOT-23 - 1.1 mm max height-
click to zoom

TPS37044BJOFDDFR Details

  • Manufacturer Part Number:

    TPS37044BJOFDDFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    WINDOW VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.015 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS37044BJOFDDFR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the device placed close to the power source, using short traces and minimizing inductance. A 4-layer PCB with a solid ground plane is recommended. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The output capacitor value depends on the output voltage, output current, and desired transient response. A general guideline is to use a capacitor with a value between 10uF to 47uF, with a voltage rating at least 1.5 times the output voltage. TI provides a capacitor selection guide in the datasheet.
  • The TPS37044BJOFDDFR has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 4.5V to 15V. Exceeding the absolute maximum rating can damage the device.
  • The TPS37044BJOFDDFR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold is set by the voltage divider ratio. TI provides a detailed OVP implementation guide in the datasheet.
  • The thermal derating curve is provided in the datasheet and shows the reduction in output current capability as the junction temperature increases. The device's performance is affected by the thermal derating, and it's essential to ensure proper thermal management to maintain the desired output current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS37044BJOFDDFR Overview

Use the download button to access the TPS37044BJOFDDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
