TPS3707-30DGNR - Texas Instruments

Description: Processor Supervisor 1.25V/2.63V 2.5V/3V/3.3V/5V 8-Pin HVSSOP EP T/R

Download TPS3707-30DGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

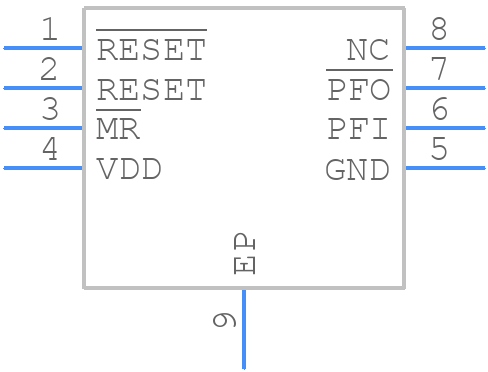

Symbol
TPS3707-30DGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3707-30DGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
TPS3707-30DGNR - Texas Instruments - 3D model - Small Outline Packages - DGN0008D
click to zoom

TPS3707-30DGNR Details

  • Manufacturer Part Number:

    TPS3707-30DGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.63V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3707-30DGNR Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS3707-30DGNR involves placing the device close to the power source, using short and wide traces for the power lines, and keeping the sense lines away from the power lines to minimize noise. Additionally, a 10nF capacitor should be placed between the VCC and GND pins to filter out noise.
  • The correct resistor values for the TPS3707-30DGNR depend on the desired threshold voltage and hysteresis. The datasheet provides a formula to calculate the resistor values based on the desired threshold voltage and hysteresis. It is recommended to use 1% tolerance resistors to ensure accurate threshold voltage and hysteresis.
  • The maximum voltage that can be applied to the TPS3707-30DGNR is 40V. Exceeding this voltage can damage the device. It is recommended to use a voltage limiter or a voltage regulator to ensure that the voltage does not exceed the maximum rating.
  • The TPS3707-30DGNR has an internal voltage limiter that prevents the output from exceeding 30V. If the input voltage exceeds 30V, the device will enter an overvoltage condition and the output will be clamped to 30V. The device will recover once the input voltage returns to a safe level.
  • The TPS3707-30DGNR is rated for operation up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures. It is recommended to derate the device's performance and consider using a heat sink or thermal management system to ensure reliable operation in high-temperature applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3707-30DGNR Overview

Use the download button to access the TPS3707-30DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
