TPS3707-33D - Texas Instruments

Description: Texas Instruments TPS3707-33D, Dual Processor Supervisor 2.5/3/3.3/5 V, Reset Input, 8-Pin SOIC

Download TPS3707-33D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

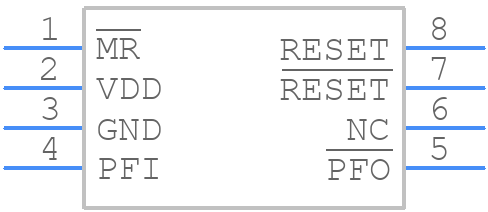

Symbol
TPS3707-33D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3707-33D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - +soic d
click to zoom
3D Models
TPS3707-33D - Texas Instruments - 3D model - Small Outline Packages - +soic d
click to zoom

TPS3707-33D Details

  • Manufacturer Part Number:

    TPS3707-33D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS3707-33D Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS3707-33D involves placing the input capacitor (Cin) close to the VIN pin, and the output capacitor (Cout) close to the VOUT pin. Additionally, keep the power traces short and wide, and use a solid ground plane to reduce noise and improve stability.
  • Choose input and output capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For the input capacitor, a 10uF to 22uF ceramic capacitor is recommended. For the output capacitor, a 10uF to 47uF ceramic capacitor is recommended. Make sure to check the capacitor's voltage rating and temperature range.
  • The TPS3707-33D can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TPS3707-33D is fixed at 3.3V, and it's not adjustable. The output voltage is regulated to 3.3V ±2% over the operating temperature range.
  • The TPS3707-33D can provide up to 1A of output current. However, the output current should be derated based on the ambient temperature and the input voltage to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3707-33D Overview

Use the download button to access the TPS3707-33D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37, or try a keyword search, such as Power Management Circuits
