TPS3707-50DGNG4 - Texas Instruments

Description: TPS3707-50DGNG4, Processor Supervisor 2-Channel 2.5, 3, 3.3, 5V Active High, Active Low, Reset 8-Pin HTSSOP EP, MSOP EP

Download TPS3707-50DGNG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

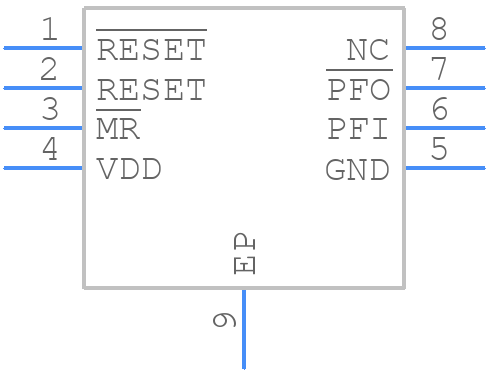

Symbol
TPS3707-50DGNG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3707-50DGNG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
TPS3707-50DGNG4 - Texas Instruments - 3D model - Small Outline Packages - DGN0008D
click to zoom

TPS3707-50DGNG4 Details

  • Manufacturer Part Number:

    TPS3707-50DGNG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    GREEN, PLASTIC, MSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:Y;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.55V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3707-50DGNG4 Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS3707-50DGNG4 involves placing the device close to the voltage rail, using short and wide traces for the power connections, and keeping the sense lines as short as possible. Additionally, it's recommended to use a solid ground plane and to decouple the device with a 0.1uF ceramic capacitor.
  • The sense line resistors (RSENSE) should be chosen based on the desired overcurrent threshold and the internal sense amplifier gain. A higher resistance value will result in a lower overcurrent threshold. TI provides a calculation tool and application notes to help with resistor selection.
  • The maximum voltage that can be applied to the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a voltage divider to ensure the EN pin voltage remains within the specified range.
  • The TPS3707-50DGNG4 is rated for operation up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques to ensure reliable operation.
  • The fault response time and delay can be adjusted by selecting the correct capacitor value for the CT pin. A larger capacitor value will result in a longer delay. TI provides guidelines and calculation tools to help with capacitor selection and fault response time adjustment.
