Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors meet the specified requirements. Additionally, ensure the device is properly decoupled, and the output voltage is within the specified range. If oscillations occur, check for layout issues, component tolerances, or incorrect component values.
The TPS3760E012DYYRQ1 has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 2.7V to 12V. Exceeding the absolute maximum rating can damage the device.
The TPS3760E012DYYRQ1 has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. Ensure proper thermal management, and consider derating the device's performance at elevated temperatures.
The output voltage of the TPS3760E012DYYRQ1 is determined by the resistor divider network (R1 and R2) connected to the FB pin. Use the formula: VOUT = 0.8V x (1 + R2/R1) to calculate the output voltage. Ensure the resistors are of high precision and low tolerance to maintain accurate output voltage regulation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3760E012DYYRQ1 Overview

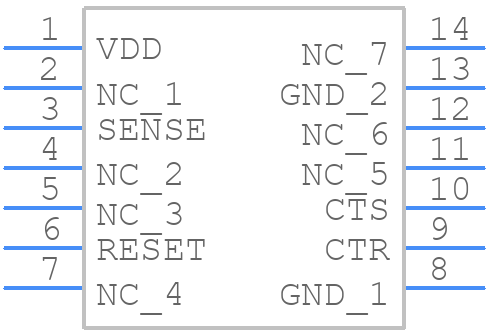

Use the download button to access the TPS3760E012DYYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
