TPS3808G30DRVT - Texas Instruments

Description: Processor Supervisor 2.79V 1 Active Low/Open Drain 6-Pin WSON EP T/R

Download TPS3808G30DRVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

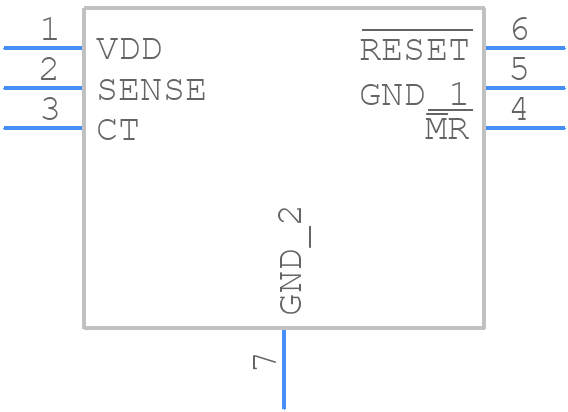

TPS3808G30DRVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3808G30DRVT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
TPS3808G30DRVT - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

TPS3808G30DRVT Details

  • Manufacturer Part Number:

    TPS3808G30DRVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.006 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.79V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS3808G30DRVT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS3808G30DRVT involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. Refer to the TI application note 'TPS3808 Layout and Placement Guidelines' for more information.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of 1-10uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of 1-22uF. The capacitor values and types should be chosen based on the specific application requirements and the output voltage ripple and noise requirements.
  • The maximum input voltage that the TPS3808G30DRVT can handle is 18V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the TPS3808G30DRVT can be adjusted by using a resistor divider network between the output and the ADJ pin. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The thermal shutdown temperature of the TPS3808G30DRVT is 150°C. The device will shut down when the junction temperature exceeds this value, and will restart when the temperature drops below 140°C.
