TPS3838K33DRVT - Texas Instruments

Description: Texas Instruments TPS3838K33DRVT, Processor Supervisor 1.6 → 6 V, Reset Input, 6-Pin SON

Download TPS3838K33DRVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

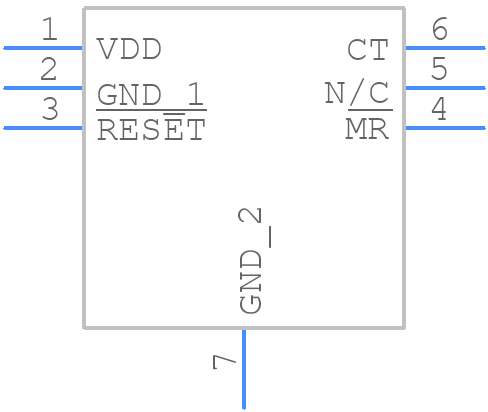

TPS3838K33DRVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3838K33DRVT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
TPS3838K33DRVT - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

TPS3838K33DRVT Details

  • Manufacturer Part Number:

    TPS3838K33DRVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS3838K33DRVT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS3838K33DRVT can be found in the Texas Instruments application note 'TPS3838 Layout and Placement Guidelines' (SLVAE04). It provides guidance on component placement, routing, and thermal considerations to ensure optimal performance and reliability.
  • The output voltage tolerance of the TPS3838K33DRVT can be calculated using the formula: Output Voltage Tolerance = (Output Voltage Nominal x (1 + (Temperature Coefficient x (Temperature - 25°C)))) ± (Output Voltage Accuracy). The temperature coefficient and output voltage accuracy values can be found in the datasheet.
  • The maximum input voltage that the TPS3838K33DRVT can handle is 6V. Exceeding this voltage may cause damage to the device or affect its performance.
  • The TPS3838K33DRVT has an open-drain power-good output (PG) that can be used to indicate when the output voltage is within regulation. To implement a power-good signal, connect the PG pin to a pull-up resistor and a logic input. The PG pin will be pulled low when the output voltage is out of regulation, and will be high when the output voltage is within regulation.
  • The thermal shutdown temperature of the TPS3838K33DRVT is typically 150°C. When the junction temperature exceeds this value, the device will shut down to prevent damage.
