TPS3840DL30DBVR - Texas Instruments

Description: Nanopower high-input voltage supervisor with manual reset and programmable-reset time delay

Download TPS3840DL30DBVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

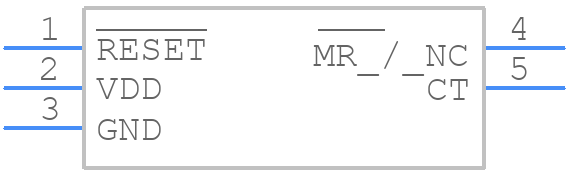

TPS3840DL30DBVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3840DL30DBVR - Texas Instruments PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - DBV0005A
click to zoom
3D Models
TPS3840DL30DBVR - Texas Instruments - 3D model - SOT23 (5-Pin) - DBV0005A
click to zoom

TPS3840DL30DBVR Details

  • Manufacturer Part Number:

    TPS3840DL30DBVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23-5

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-07-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SOP5,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.0007 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn); Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS3840DL30DBVR Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS3840DL30DBVR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is recommended. The output capacitor should be chosen based on the output voltage and current requirements. A 10uF to 47uF ceramic capacitor is recommended. The capacitor's voltage rating should be at least 1.5 times the output voltage.
  • The maximum ambient temperature range for the TPS3840DL30DBVR is -40°C to 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It is recommended to keep the device within a temperature range of -20°C to 70°C for optimal performance.
  • The TPS3840DL30DBVR has a power-good output that can be used to monitor the output voltage. The device should be powered up and down slowly to prevent voltage spikes and overshoots. A soft-start circuit can be used to control the power-up sequence. The device should be powered down by reducing the input voltage slowly to prevent voltage spikes and overshoots.
  • The recommended input voltage range for the TPS3840DL30DBVR is 2.7V to 5.5V. The device can operate with an input voltage as low as 2.5V, but the output voltage regulation may be affected. The device can also operate with an input voltage up to 6V, but the power dissipation and junction temperature may increase.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3840DL30DBVR Overview

Use the download button to access the TPS3840DL30DBVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38, or try a keyword search, such as Power Management Circuits
