A good PCB layout for the TPS3851G33EDRBR involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide to minimize inductance and resistance. Additionally, it's recommended to use a 10uF ceramic capacitor at the input and a 1uF ceramic capacitor at the output to filter out noise and ripple.
When choosing an output capacitor for the TPS3851G33EDRBR, consider the output voltage, output current, and ripple requirements. A general rule of thumb is to use a capacitor with a value of at least 1uF and a voltage rating of at least 1.5 times the output voltage. For example, for a 3.3V output, use a 4.7uF or 10uF capacitor with a voltage rating of 6.3V or higher.
The TPS3851G33EDRBR has an absolute maximum input voltage rating of 15V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
The TPS3851G33EDRBR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet to ensure reliable operation.
To troubleshoot issues with the TPS3851G33EDRBR, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Also, ensure that the device is properly soldered and that there are no signs of physical damage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS3851G33EDRBR Overview

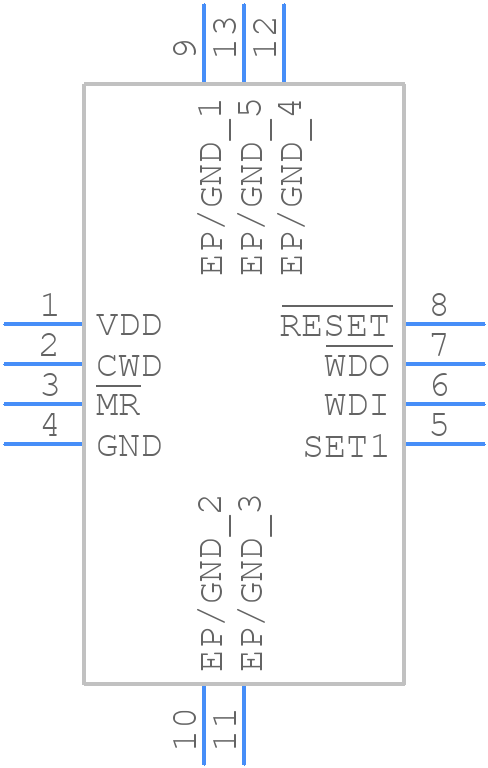

Use the download button to access the TPS3851G33EDRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
