TPS3851H30EDRBR - Texas Instruments

Description: Supervisory Circuits High-accuracy voltag e supervisor with I A 595-TPS3851H30EDRBT

Download TPS3851H30EDRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

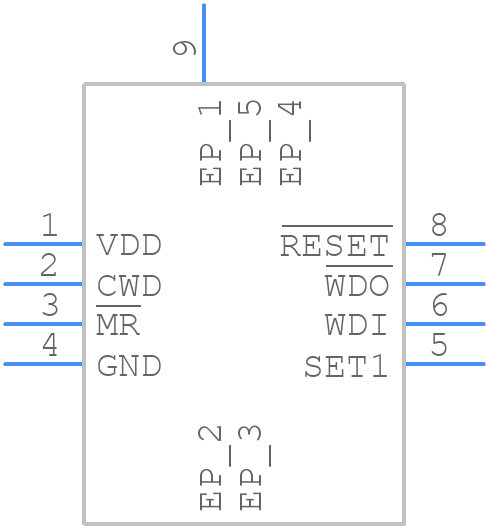

TPS3851H30EDRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3851H30EDRBR - Texas Instruments PCB footprint - Other - Other - DRB0008A
click to zoom
3D Models
TPS3851H30EDRBR - Texas Instruments - 3D model - Other - DRB0008A
click to zoom

TPS3851H30EDRBR Details

  • Manufacturer Part Number:

    TPS3851H30EDRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-22

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.019 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.79V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3851H30EDRBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for voltage regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • The output voltage tolerance of the TPS3851H30EDRBR is specified as ±1.5% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage (3.0V) by the tolerance percentage (1.5%). This gives a tolerance range of ±45mV.
  • The maximum input voltage that can be applied to the TPS3851H30EDRBR is 6.5V, as specified in the datasheet. Exceeding this voltage can cause damage to the device.
  • The TPS3851H30EDRBR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using a heat sink or thermal management system if the device will be operating in a high-temperature environment.
  • To ensure proper biasing during startup, it's recommended to follow the startup sequence guidelines in the datasheet, which include applying the input voltage before the enable signal, and ensuring that the input voltage is stable before enabling the device.
