TPS3851H30EQDRBRQ1 - Texas Instruments

Description: Automotive High-Accuracy Voltage Supervisor With Integrated Watchdog Timer

Download TPS3851H30EQDRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

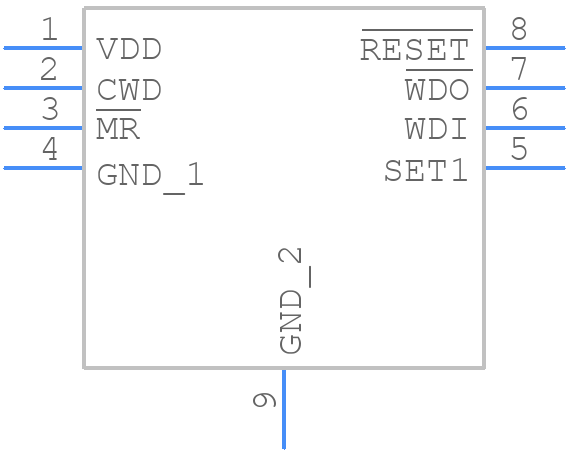

Symbol
TPS3851H30EQDRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3851H30EQDRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008F
click to zoom
3D Models
TPS3851H30EQDRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008F
click to zoom

TPS3851H30EQDRBRQ1 Details

  • Manufacturer Part Number:

    TPS3851H30EQDRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    THRESHOLD VOLTAGE IS 3.0V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.019 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3851H30EQDRBRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for voltage regulator design, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • The output voltage tolerance of the TPS3851H30EQDRBRQ1 is specified as ±2% in the datasheet. To calculate the output voltage tolerance, multiply the nominal output voltage (3.0V) by the tolerance percentage (±2%). This gives a range of 2.94V to 3.06V.
  • The maximum input voltage that can be applied to the TPS3851H30EQDRBRQ1 is 6.5V, as specified in the datasheet. Exceeding this voltage can cause permanent damage to the device.
  • The TPS3851H30EQDRBRQ1 has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device will shut down quickly to minimize power consumption. However, the exact behavior may depend on the specific application and circuit design.
  • The TPS3851H30EQDRBRQ1 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3851H30EQDRBRQ1 Overview

Use the download button to access the TPS3851H30EQDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
