A good PCB layout for the TPS3851H33EDRBR involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide to minimize inductance and resistance.
To ensure stability, make sure to follow the recommended capacitor values and types, and place them close to the device. Also, ensure the input and output capacitors are properly decoupled, and the device is operated within its recommended operating conditions.
The TPS3851H33EDRBR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines for more information.
Yes, the TPS3851H33EDRBR is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended design and testing guidelines for these applications.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout, component values, and decoupling capacitors. Use an oscilloscope to measure the output voltage and current waveforms. Consult the datasheet and application notes for more guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3851H33EDRBR Overview

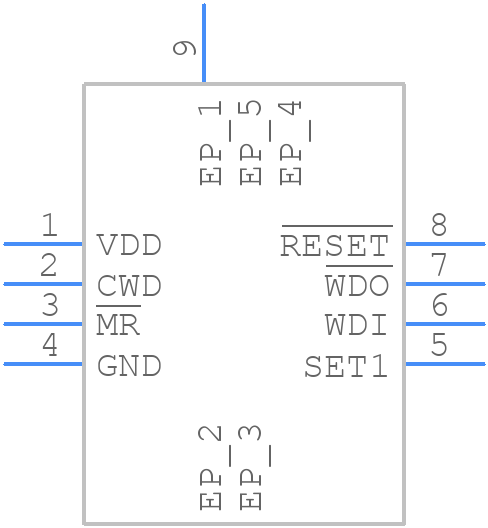

Use the download button to access the TPS3851H33EDRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38,
or try a keyword search, such as Power Management Circuits
