TPS51604DSGT - Texas Instruments

Description: Texas Instruments TPS51604DSGT, Dual MOSFET Power Driver, 4A, 4.5 → 28 V, 8-Pin WSON

Download TPS51604DSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

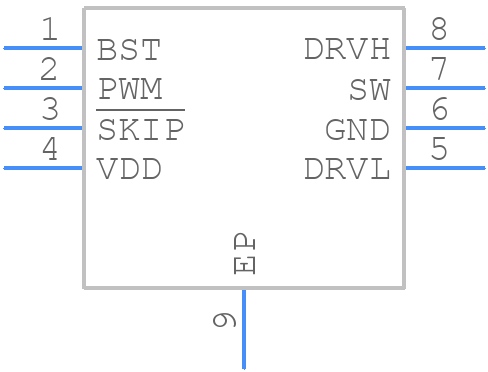

TPS51604DSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51604DSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - TPS51604DSGT
click to zoom
3D Models
TPS51604DSGT - Texas Instruments - 3D model - Small Outline No-lead - TPS51604DSGT
click to zoom

TPS51604DSGT Details

  • Manufacturer Part Number:

    TPS51604DSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED GAN FET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    -1 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.015 µs

  • Turn-on Time:

    0.035 µs

  • Width:

    2 mm

TPS51604DSGT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS51604DSGT should include a solid ground plane, separate power and ground planes for the input and output, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, the input and output capacitors should be placed close to the device, and the feedback resistors should be placed close to the FB pin.
  • The input capacitor should be a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of at least 10uF. The output capacitor should be a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of at least 22uF. The capacitor values may need to be adjusted based on the specific application and output current requirements.
  • The TPS51604DSGT can deliver up to 4A of output current, but the maximum output current may be limited by the thermal performance of the device and the PCB. The device should be operated within the recommended operating conditions to ensure reliable operation.
  • The output voltage of the TPS51604DSGT can be adjusted by changing the feedback resistors (RFBT and RFB) according to the equation: VOUT = 0.8V x (1 + RFBT/RFB). The output voltage range is from 0.8V to 5.5V.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and the output is turned off.
