Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The maximum input voltage rating of the TPS61280YFFR is 15V, but it's recommended to derate the input voltage to 12V to ensure reliable operation and to prevent damage to the IC. Exceeding the maximum input voltage can cause damage to the IC or affect its performance.
To ensure stability, it's essential to follow the recommended PCB layout, use the correct input and output capacitors, and ensure that the input voltage is within the recommended range. Additionally, the datasheet provides guidance on the selection of the compensation capacitor and resistor values to ensure stability. It's also recommended to simulate the design using a SPICE model or a circuit simulator to verify stability.
The typical efficiency of the TPS61280YFFR depends on the input voltage, output voltage, and load current. According to the datasheet, the efficiency can range from 85% to 95% depending on the specific operating conditions. However, the actual efficiency may vary depending on the specific application and design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61280YFFR Overview

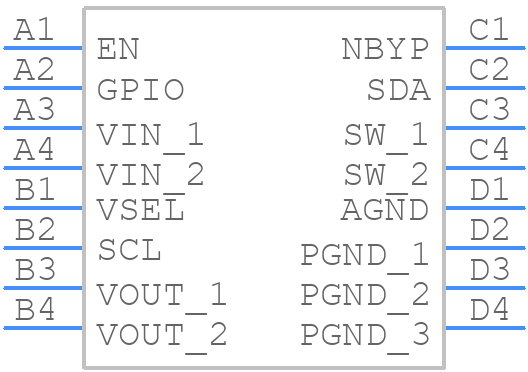

Use the download button to access the TPS61280YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
