Texas Instruments provides a recommended layout and placement guide in the TPS65010RGZR datasheet (Section 10.2) and in the application note 'TPS65010RGZR Layout Guidelines' (SLUA623). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and overall device reliability.
To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, and the output voltage is set using a high-precision resistor divider network. Additionally, consider using a low-ESR output capacitor and minimizing the PCB trace resistance to reduce voltage drops. Refer to the datasheet (Section 8.3) for more information.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even device failure.
The TPS65010RGZR is rated for operation up to 85°C (TJ). However, it's essential to consider the device's power dissipation, thermal resistance, and PCB thermal design to ensure reliable operation in high-temperature environments. Consult the datasheet (Section 6.3) and application notes for thermal design guidelines.
To troubleshoot issues with the TPS65010RGZR, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values to ensure they match the recommended design. Consult the datasheet (Section 9) and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65010RGZR Overview

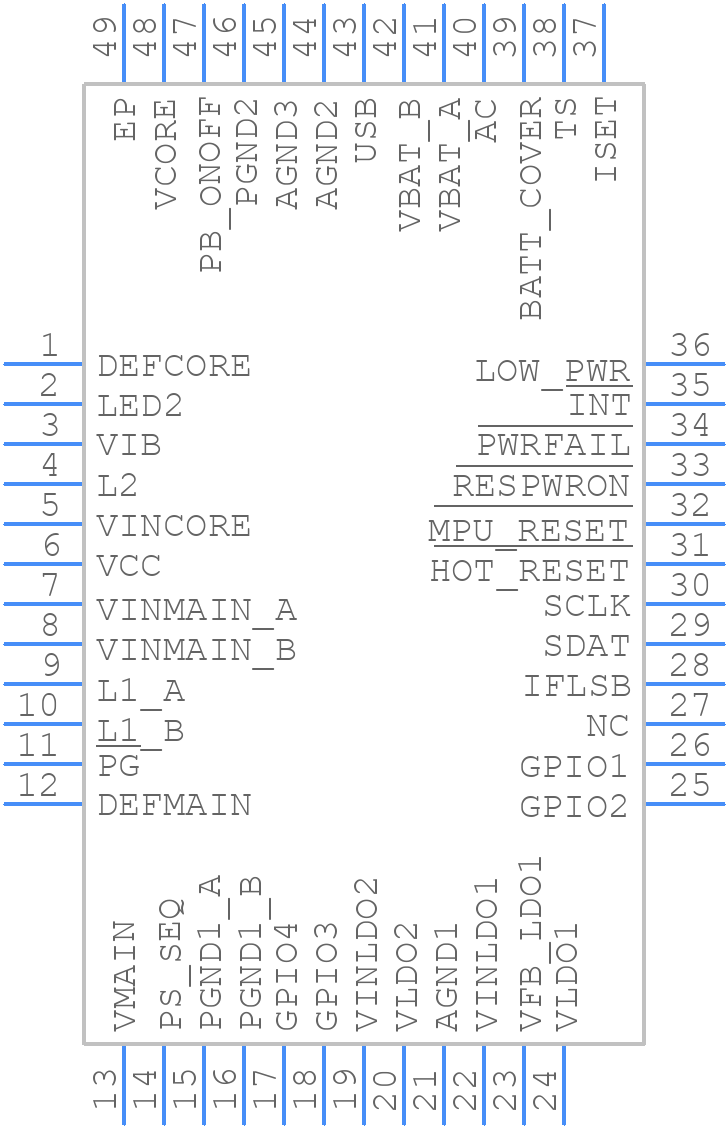

Use the download button to access the TPS65010RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
