Texas Instruments provides a recommended layout and placement guide in the TPS65010RGZT datasheet (Section 10.2) and in the application note 'TPS65010RGZT Layout Guidelines' (SLUA623). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and overall device reliability.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Texas Instruments recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10 μF and a voltage rating of at least 1.5 times the output voltage. The application note 'TPS65010RGZT Output Capacitor Selection' (SLUA624) provides more detailed guidance.
Although the datasheet specifies a maximum input voltage of 5.5 V, the device can handle input voltages up to 6 V for short durations (e.g., during power-up or voltage transients). However, sustained operation above 5.5 V may reduce the device's reliability and lifespan.
The TPS65010RGZT is rated for operation up to 85°C (junction temperature). While it can tolerate short-term excursions up to 105°C, sustained operation above 85°C may reduce the device's reliability and lifespan. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Texas Instruments provides a troubleshooting guide in the TPS65010RGZT datasheet (Section 11) and in the application note 'TPS65010RGZT Troubleshooting Guide' (SLUA625). Common issues include incorrect output capacitor selection, inadequate input decoupling, and thermal-related problems. Consult the guides for step-by-step troubleshooting procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65010RGZT Overview

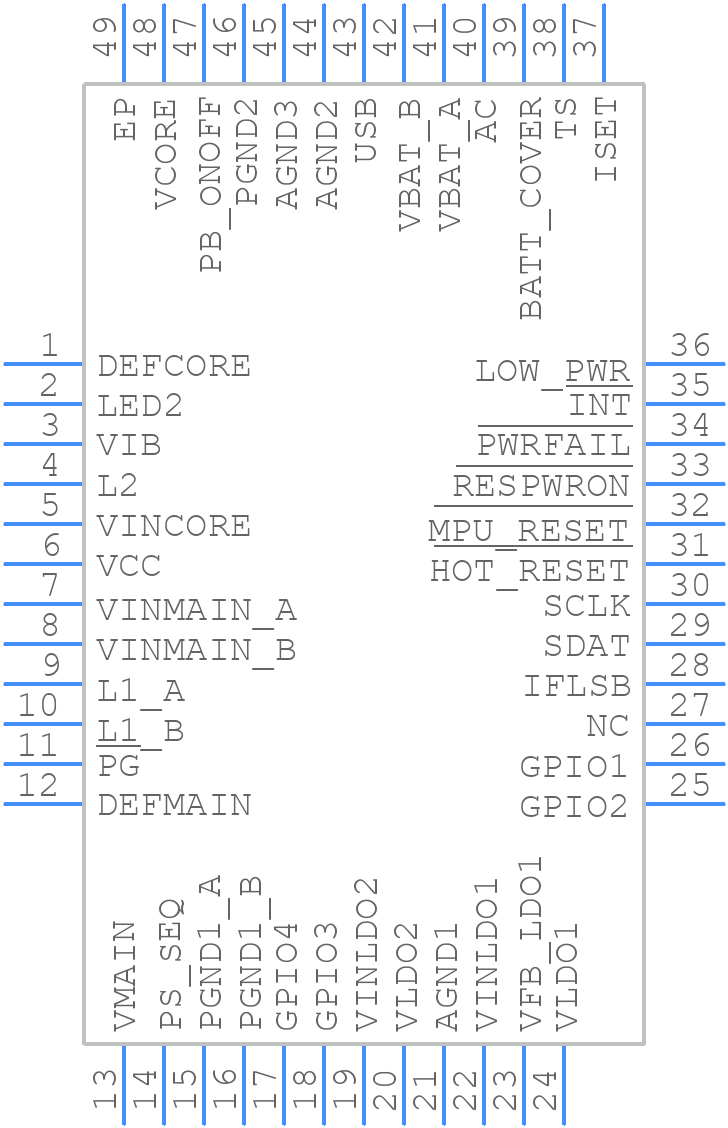

Use the download button to access the TPS65010RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
