TPS65011RGZR - Texas Instruments

Description: Multi-Channel 1-cell Li-Ion Power PMIC USB/AC Charger, 2DC/DC, 2 LDOs, I2C interface in QFN-48

Download TPS65011RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

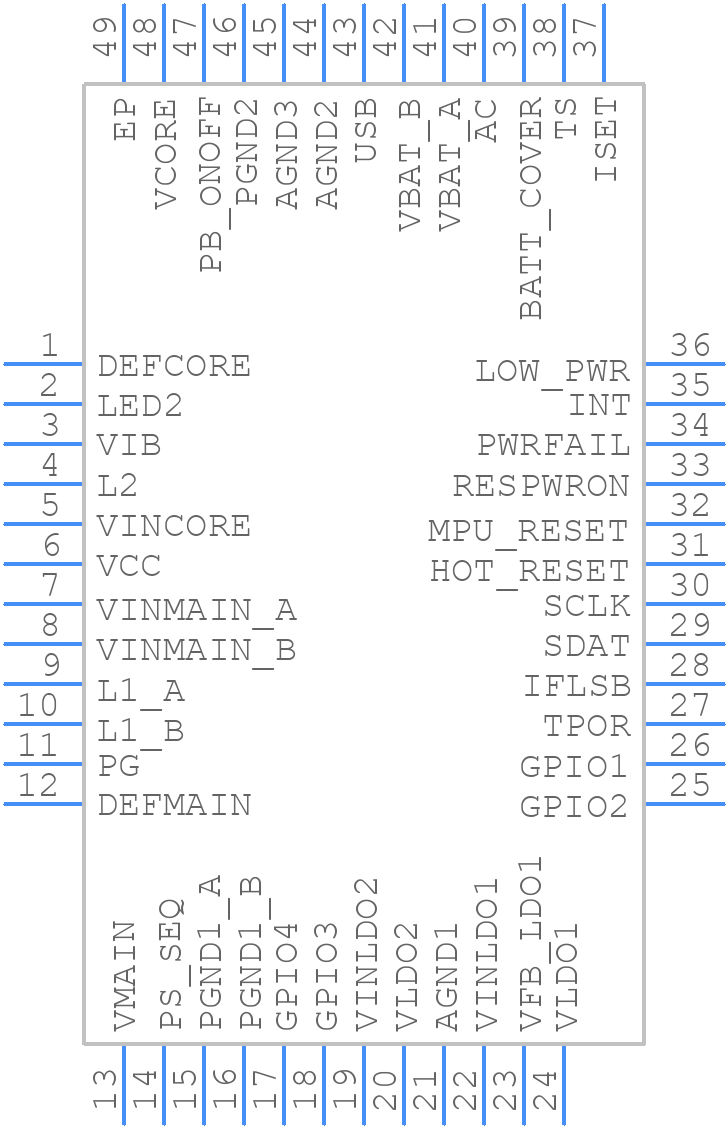

TPS65011RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65011RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A 2021
click to zoom
3D Models
TPS65011RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A 2021
click to zoom

TPS65011RGZR Details

  • Manufacturer Part Number:

    TPS65011RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    6.5 V

  • Output Voltage-Min:

    0.85 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS65011RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS65011RGZR datasheet (Section 10.2) and in the application note 'TPS65011RGZR Layout and Placement Guidelines' (SLUAUH7). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and overall device reliability.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Texas Instruments recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The application note 'TPS65011RGZR Output Capacitor Selection' (SLUAUH8) provides more detailed guidance.
  • The TPS65011RGZR has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device.
  • The TPS65011RGZR has a junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. Texas Instruments recommends derating the output current and voltage according to the thermal derating curves provided in the datasheet (Section 6.3).
  • Texas Instruments provides a troubleshooting guide in the TPS65011RGZR datasheet (Section 11) and in the application note 'TPS65011RGZR Troubleshooting Guide' (SLUAUH9). Common issues and their solutions are discussed, including output voltage instability, overheating, and input voltage undershoot.
