Part Image

TPS65013RGZT - Texas Instruments

Description: Multi-Channel 1-cell Li-Ion PMIC USB/AC Charger, 2DC/DC, 2 LDOs, I2C interface in QFN-48

Download TPS65013RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

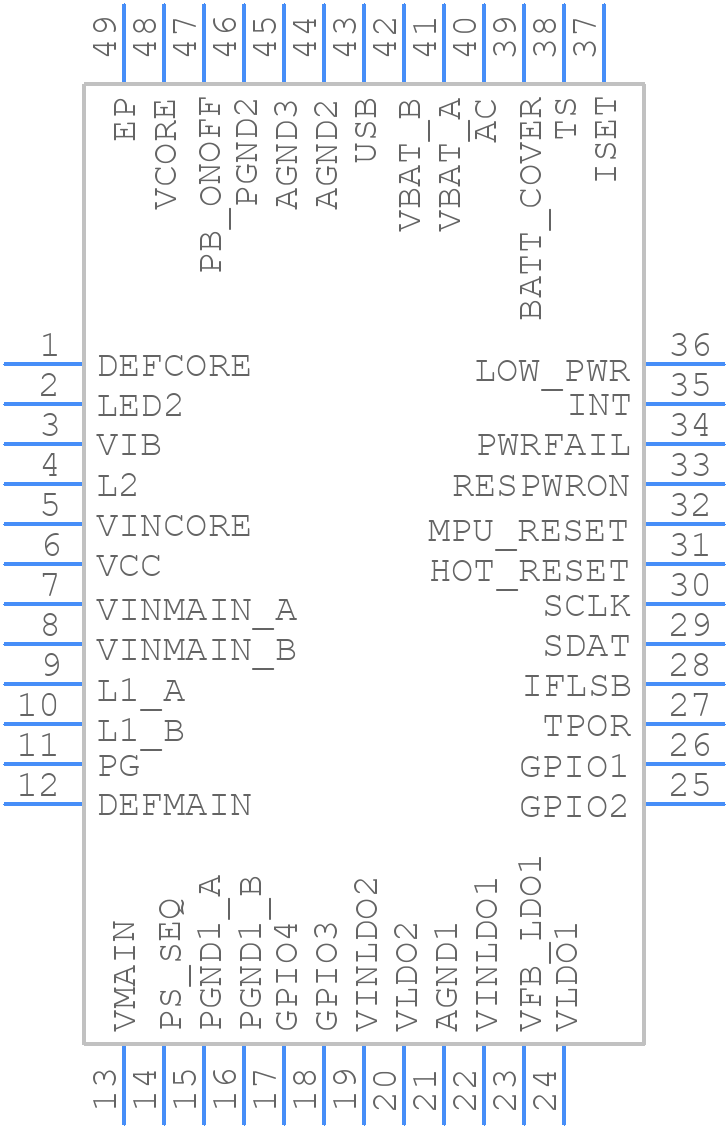

TPS65013RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65013RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A
click to zoom
3D Models
TPS65013RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A
click to zoom

TPS65013RGZT Details

  • Manufacturer Part Number:

    TPS65013RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    6.5 V

  • Output Voltage-Min:

    0.85 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS65013RGZT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS65013RGZT can be found in the Texas Instruments application note 'TPS65013 Layout and Placement Guidelines' (SLVAE04). It provides guidance on component placement, routing, and thermal considerations to ensure optimal performance and reliability.
  • The selection of the output capacitor depends on the specific application requirements, such as output voltage, current, and ripple. A general guideline is to choose a capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. The Texas Instruments capacitor selection guide (SLVAE05) provides more detailed information and recommendations.
  • The TPS65013RGZT has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 2.7V to 15V. Exceeding the absolute maximum rating can damage the device.
  • The TPS65013RGZT output voltage can be configured using the FB pin and an external resistor divider network. The output voltage is determined by the ratio of the resistors and the internal reference voltage. The Texas Instruments datasheet provides a formula and examples for calculating the required resistor values.
  • The TPS65013RGZT has a thermal shutdown temperature of 150°C (typical) and 160°C (maximum). When the device temperature exceeds this threshold, it will shut down to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65013RGZT Overview

Use the download button to access the TPS65013RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
