Texas Instruments provides a recommended layout and placement guide in the TPS65022RHAT datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website offers a PCB layout checklist and a layout guide for DC/DC converters.
To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, and the output voltage is set correctly using the FB pin. Also, consider the output voltage tolerance, which is typically ±2% for the TPS65022RHAT. Additionally, use a high-precision voltage reference and ensure that the PCB layout is optimized for minimal noise and thermal effects.
The TPS65022RHAT can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
Thermal management is crucial for the TPS65022RHAT. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. Monitor the device temperature and adjust the layout and thermal design accordingly.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The input capacitor helps to filter the input voltage and reduce noise. Ensure that the capacitor is rated for the maximum input voltage and has a low equivalent series resistance (ESR) to minimize voltage drops.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65022RHAT Overview

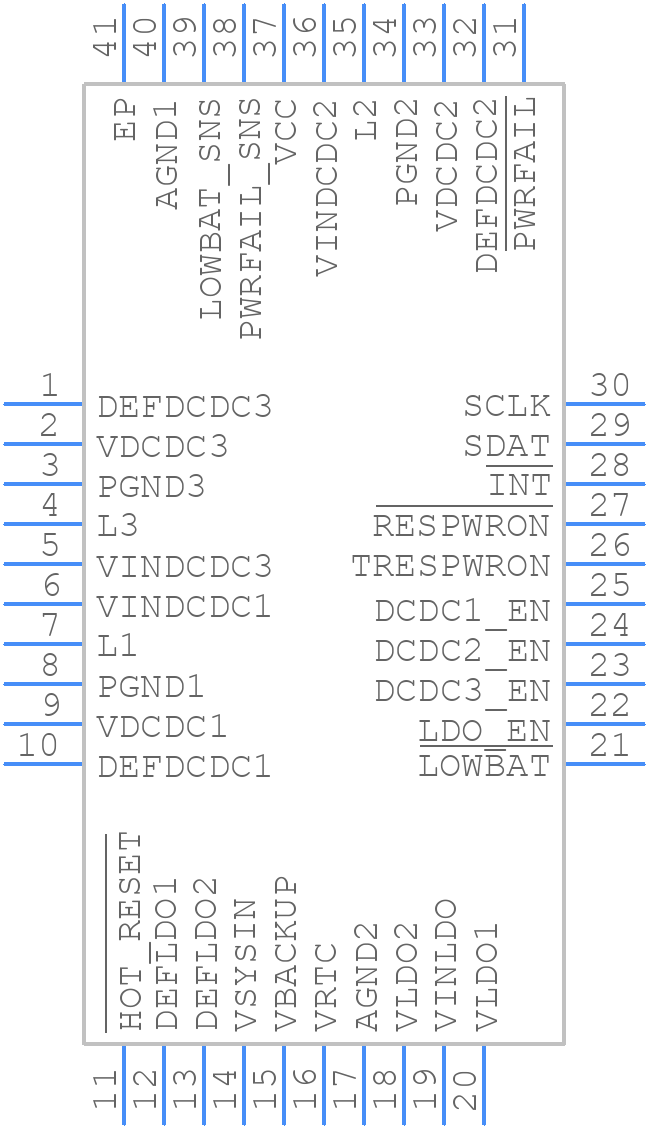

Use the download button to access the TPS65022RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
