The recommended layout and placement for the TPS650241RHBT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the performance of the TPS650241RHBT, ensure that the input voltage is within the recommended range, use high-quality capacitors, and minimize the distance between the device and the capacitors. Additionally, use a low-ESR capacitor for the output filter capacitor and ensure that the PCB layout is optimized for low noise and low impedance.
The TPS650241RHBT has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. The device can operate up to a junction temperature of 125°C, and the thermal resistance (θJA) is 30°C/W. Ensure that the device is mounted on a PCB with a thermal relief pattern to facilitate heat dissipation.
To troubleshoot issues with the TPS650241RHBT, start by checking the input voltage and current, and ensure that the device is properly configured. Check for any signs of overheating, and verify that the output voltage is within the expected range. Use an oscilloscope to check for any noise or oscillations on the output, and consult the datasheet and application notes for guidance on troubleshooting common issues.
The TPS650241RHBT is designed to meet the EMI and EMC requirements of most applications. However, to ensure compliance, use a shielded enclosure, keep the device and capacitors away from the PCB edges, and use a common-mode choke or ferrite bead to filter the output. Additionally, ensure that the PCB layout is optimized for low radiation and low susceptibility to external interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS650241RHBT Overview

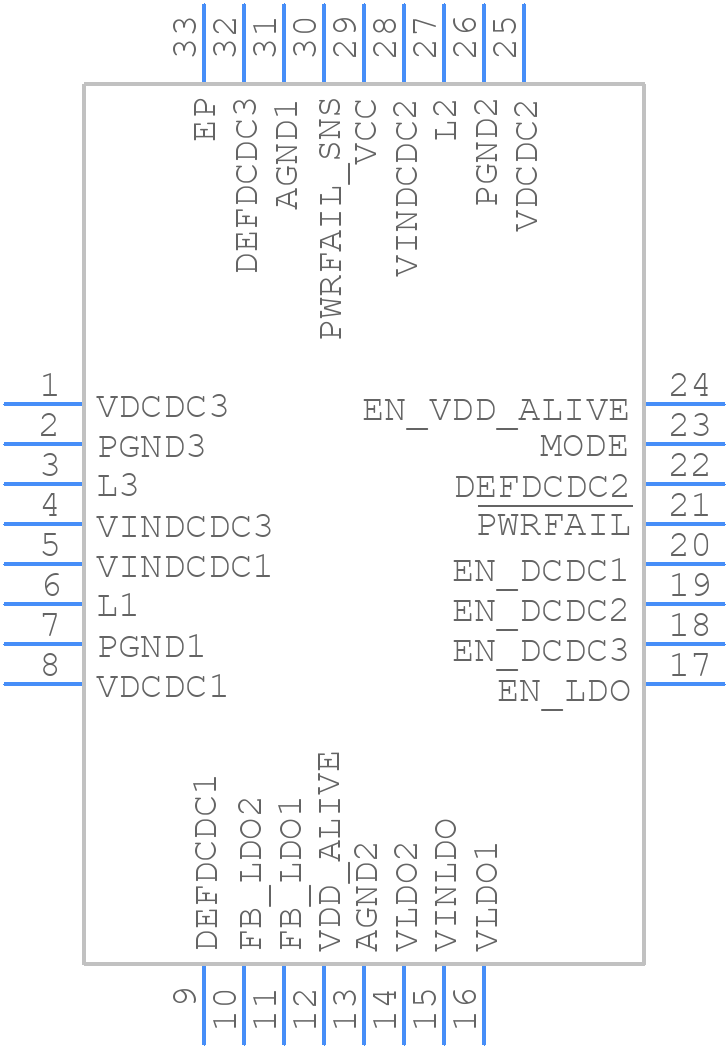

Use the download button to access the TPS650241RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
