The maximum input voltage that can be applied to the TPS650243RHBT is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To ensure the stability of the output voltage rails, it's essential to follow the recommended layout guidelines, use the correct output capacitors, and ensure that the input voltage is within the recommended range. Additionally, the device's internal soft-start feature helps to prevent output voltage overshoot during startup.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
The output voltage of each rail can be calculated using the resistor divider network connected to the FB (feedback) pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage (0.8V). The datasheet provides a formula to calculate the output voltage based on the resistor values.
The maximum output current that each rail can deliver depends on the specific rail. The datasheet specifies the maximum output current for each rail: 300mA for VOUT1, 200mA for VOUT2, and 150mA for VOUT3. It's essential to ensure that the output current does not exceed these maximum values to prevent overheating and device damage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS650243RHBT Overview

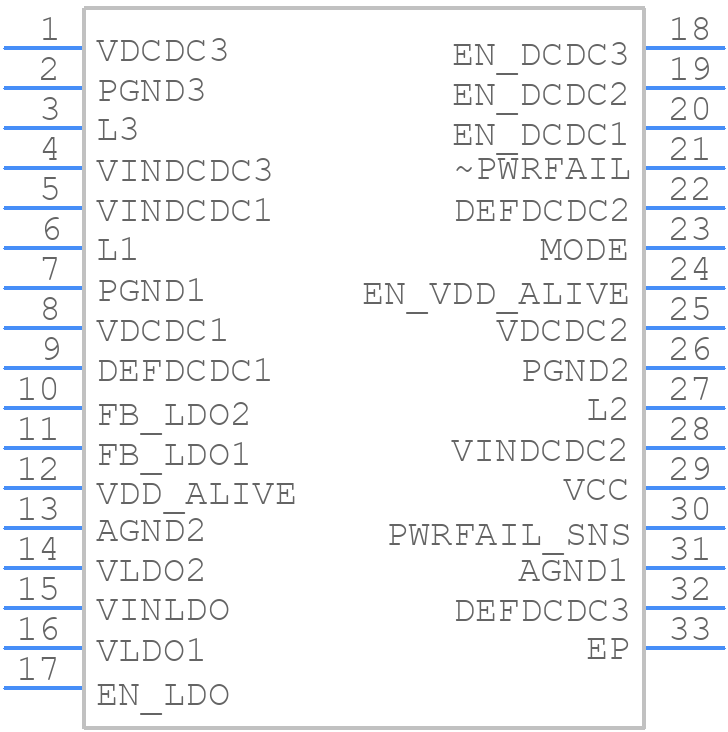

Use the download button to access the TPS650243RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
